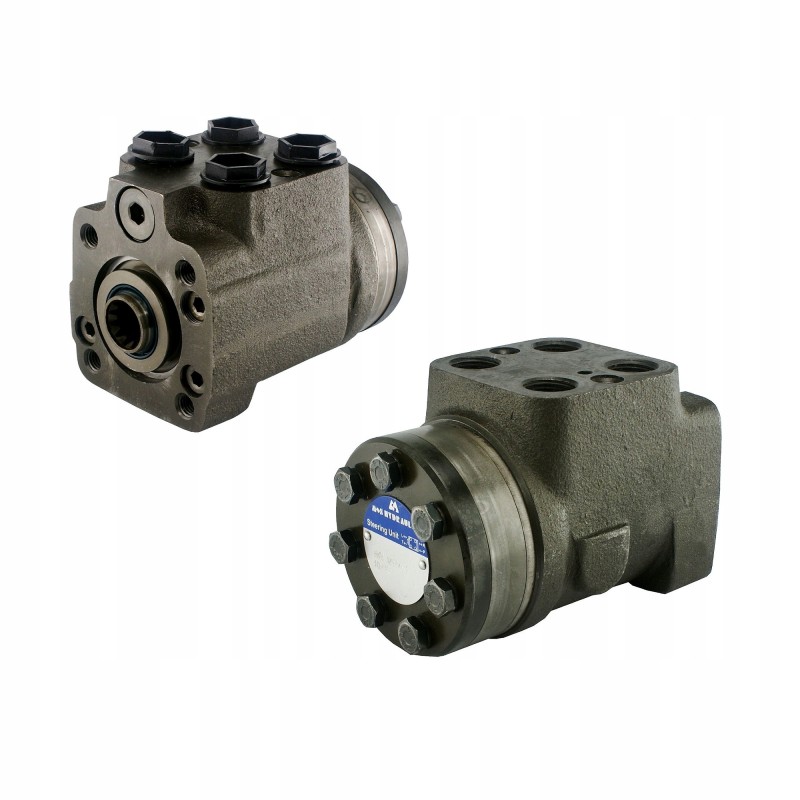

Orbitrol ospc 200 on ms hkus200 4

ORBITROL OSPC 200 ONProduction:

Original product of the M+S Hydraulic brand, symbol: HKUS200/4, 1/06/03/200

Comparison numbers of other manufacturers:

OSPC- 200-ON, OSPC200ON, 150N2154, HKUS200/4

Application:

It is widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 200 ON intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

Application in tractors:

URSUS: C-385, C-385A, 902, 912, 914, 1202, 1204, 1212, 1214

ZETOR: 8011, 8111, 8045, 8145

CASE IH: JX 55, 60, 65, 70, 75, 80, 85, 90, 95

NEW HOLLAND TD: 5040, 5050, 60D, 70D, 80D, 90D, 95D

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise device that is important for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision makes it impossible to drive and work properly with the tractor. We do not recommend the cheapest orbitrols, from unreliable sources, from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 200 with the ON system (OPEN NORMALLY), while the steering wheel is standing, the oil circulates in the system all the time and freely passes through the orbitrol, the return line to the tank, the pump then works but is relieved.

Connections: P, T, L, R internal threads [BSP]: 1 /2'

Threaded holes V: 2x M10x1 - depth: 16mm

Threaded holes B: 4x M10 - depth: 18mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 198cm3/rev

Recommended oil flow in the system: 16-24L/min.

Material:

cast iron

Drawing with full dimensions (photo):

Advantages of orbitrols produced by M+S Hydraulic:

special, reinforced and more precisely made structure ensures perfect operation without leaks, without steering wheel jerking and, most importantly, very light and smooth control even in very loaded vehicles.

each orbitrol sent together with cable connection instructions hydraulics, we also provide full technical support in selecting the appropriate orbitrol and during installation.

produced in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.< p>

steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC ON orbitrol (photo) :
