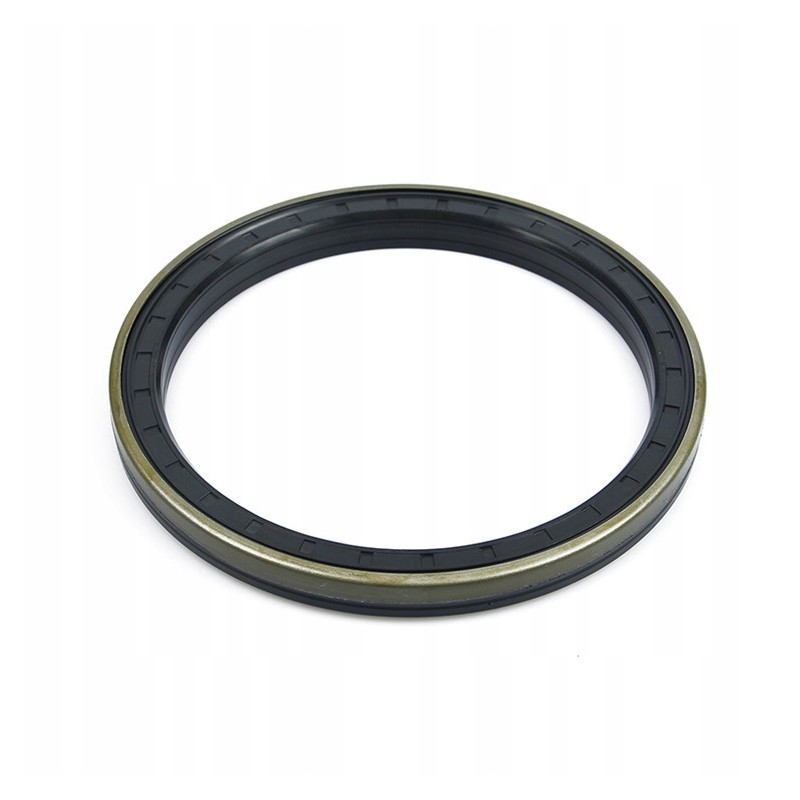

Simmering sealant 70x95x13 14 5 12018338b

Cartridge seal:

catalogue numbers: 12018338B, 354.080, 520689, WG1192151, WG1223716, 138215, 6005023964, 04402442, H816300020110, 3764633M1, 3764 633M1, 0229971247, A0229971247, 98315686, 43252D6200, 6005023964

designation: 70x95x13/14.5 (mm)

inner diameter: 70mm

outer diameter: 95 mm

height 1: 13 mm

height 2: 14.5 mm

material: NBR (good chemical resistance to numerous mineral oils and greases)

manufacturer: HUBBER / DICHTOMATIK

HIGH QUALITY!

Cartridge seals are very stiff and solid sealing systems. They are used for very heavy-duty applications in dirty environments, e.g. in commercial vehicles, material handling equipment and agricultural, forestry and construction machinery.

Functionality

Cartridge seals are completely enclosed and inside form a grease-filled maze with several sealing and dirty lips (radial and axial). The main sealing lip is spring powered. This effectively prevents the ingress of dirt, mud, water and dust. Filling with grease reduces wear, extends service life and therefore extends service intervals in difficult conditions. Cartridge seals also include a fully machined contact surface. This means that the shaft does not need to be specially hardened and grounded. Additional seals are also not required.

Media

Cartridge seals are designed to seal grease and oil on the above-mentioned machine components.

ATTENTION! Photos are for preview purposes only!
