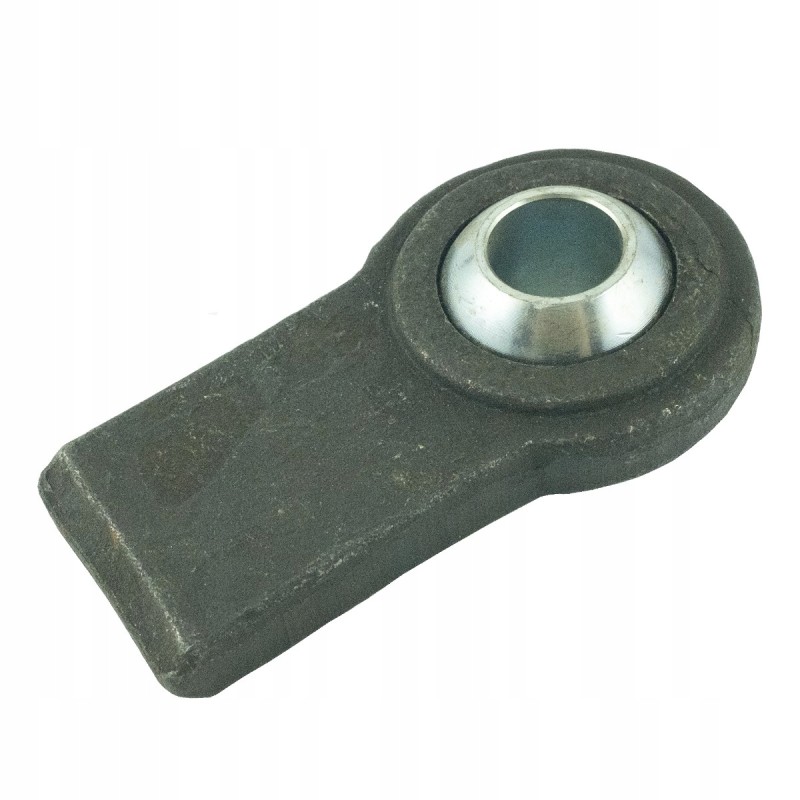

The ball end of the lift arm is just at angle 22

Traktor_com_pl offers: Ball end of the three-point linkage lifting arm Cat I 224FARMER

What is a three-point hitch? Ball end of the lower arms of the three-point hitch system, Category I. The ball end with pins is an element of the hitch for the lower beams of the tractor's three-point linkage hydraulic lift and is located on both sides. A swinging end with pins is the most popular connection used in agriculture and, depending on the size of the tractor, the ball ends may have internal diameters from 19 to 50 mm.

Condition: New

Production: Replacement

Parts: Three-point hitch

Width (mm): 50

Total length (mm): 125

Thickness (mm): 14.00

Three-point hitch: 3-point, CAT I

Working length (mm): 90

Head diameter (mm): 68

Pin hole diameter (pins/mm): 22.10

Hammer/knives/pin mounting width (a) (mm): 35

Dimensions:

pin hole diameter: 22.10 mm,

pin mounting width: 35 mm,

total length: 125 mm,

working length: 90 mm,

head diameter: 68 mm,

width: 50 mm,

thickness: 14 mm,

Three-point linkage ball end with internal thread for the lower arms of the three-point linkage.
