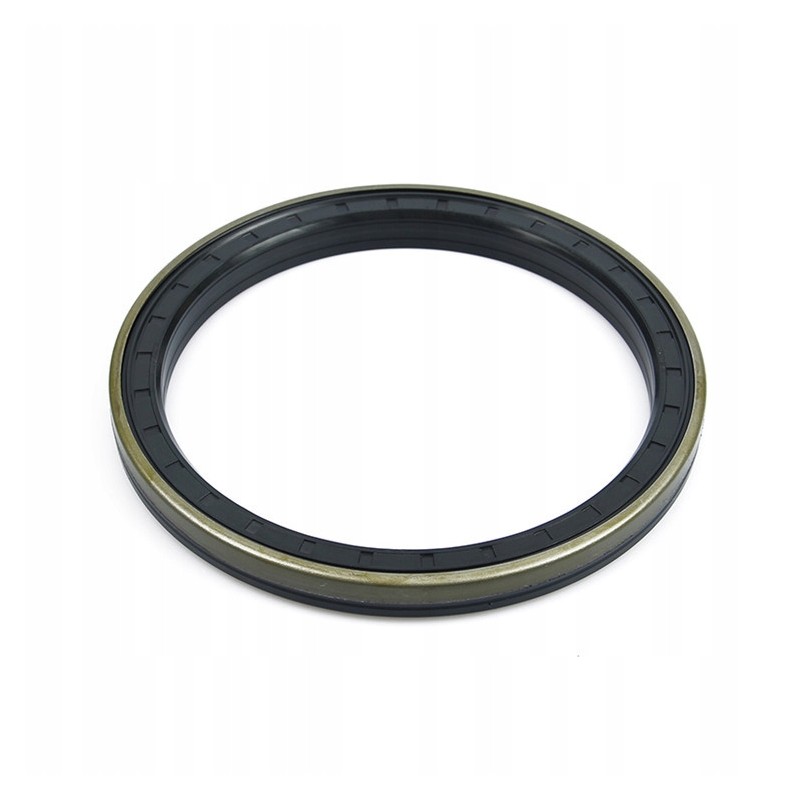

Simmering sealant 130x160x14 5 16 12016448b

Cartridge seal:

catalogue numbers: 12016448B, WG1223572, 047700, 047703, 126323, 139279, 149380, 311569A1, 6000105287, 6000147703, ER047700, R113 984, 068383R1, VA047703, 47123727, 85824344, 6000105287, 6000147703, 930232

designation: 130x160x14.5 /16 (mm)

inner diameter: 130mm

outer diameter: 160mm

height 1: 14.5mm

height 2: 16mm

material: NBR (good chemical resistance to numerous mineral oils and greases)

manufacturer: HUBBER / DICHTOMATIK

HISON QUALITY!

Cartridge seals are very stiff and solid sealing systems. They are used for very heavy-duty applications in dirty environments, e.g. in commercial vehicles, material handling equipment and agricultural, forestry and construction machinery.

Functionality

Cartridge seals are completely enclosed and inside form a grease-filled maze with several sealing and dirty lips (radial and axial). The main sealing lip is spring powered. This effectively prevents the ingress of dirt, mud, water and dust. Filling with grease reduces wear, extends service life and therefore extends service intervals in difficult conditions. Cartridge seals also include a fully machined contact surface. This means that the shaft does not need to be specially hardened and grounded. Additional seals are also not required.

Media

Cartridge seals are designed to seal grease and oil on the above-mentioned machine components.

ATTENTION! Photos are for preview purposes only!
