Rod end fendt x800210051000 m20x1 5 l 75

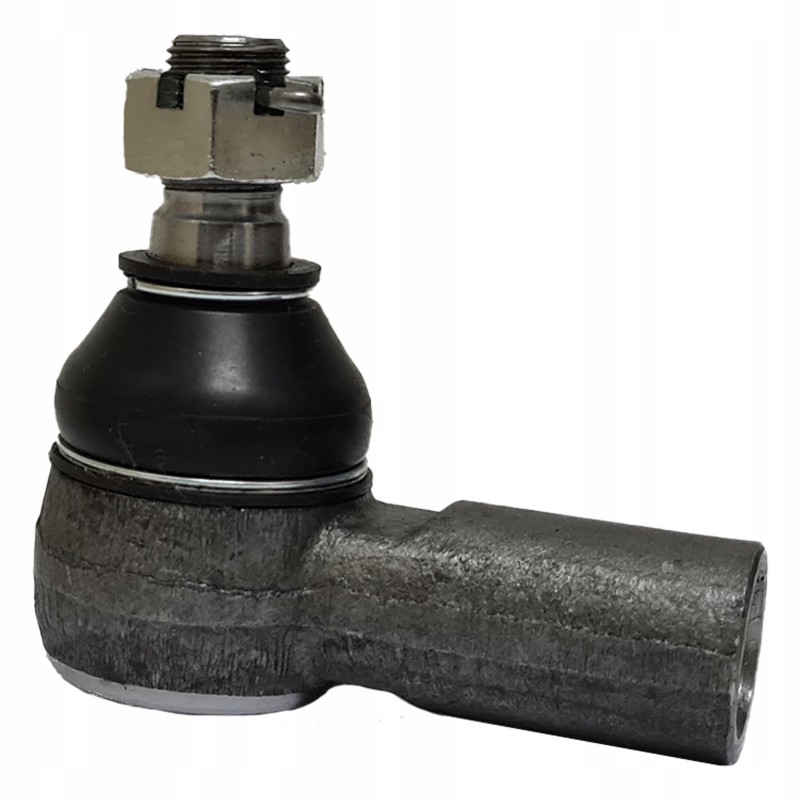

Tie rod end Fendt Case M20x1.5 L-75Fits to:

Fendt:

Farmer 100: 102, 102LS, 102LSA, 102S, 102SA, 103, 103LS, 103LSA, 103S, 103SA, 104LS, 104LSA, 104S, 104SA, 105, 105LS, 105LSA, 105S, 105SA, 106LS, 106LSA, 106S, 106SA

Farmer 300 LS(A): 303, 304, 305, 306, 308

Favorit 600: 600LS, 600LSA, 610LS, 610LSA, 610S, 610SA, 611LS, 611LSA, 611S, 611SA, 612LSA, 612SA, 614 LSA, 614SA, 615LSA, 622LS , 626LS

Case:

Series 33: 433, 533, 633, 733, 833

Series 40: 440, 540, 640, 740, 840, 940

Dimensions:

Min. cone diameter: 19.7 mm

Max. cone diameter: 22.3 mm

Thread diameter, cone side: M18x1.5

Cone length: 25 mm

Working length: 75 mm

Outer diameter of the rod: 26 mm

Thread diameter rod side: M20x1.5

Thread direction: Right

Catalog numbers: X800210051000, 3221932R92, X800.210.051.000
