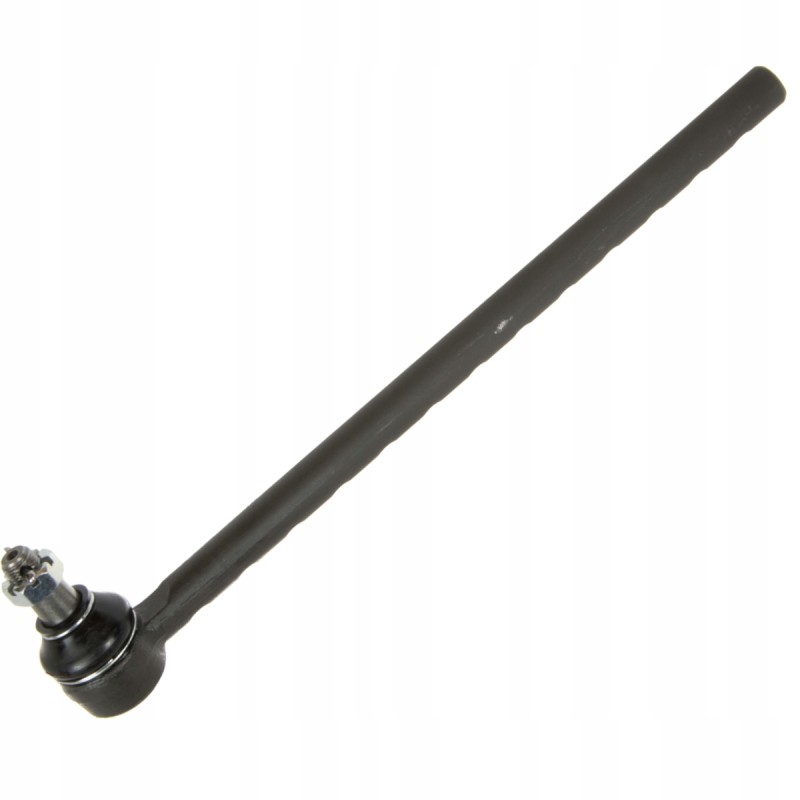

Ball joint john deere 20 30 40 50 at27134

Ball joint John Deere AT27134 MIZAR number: 66162

Ball joint John Deere AT27134

Dimensions:

Cone: 16.5-18.5mm, thread M14x1.5 right

Length: 330mm, measured from the center of the cone to the end of the arm Arm diameter: 20mm

Height: 80mm

Number of holes: 13

Hole diameter: 12mm Application:

John Deere

20 1020, 1020 (Europe), 1120, 2020, 2020 (Europe), 2120 (Europe), 2120 (USA), 820, 820 (North America), 920

30 1030, 1030 (Espana), 1030OU (Espana), 1030VU (Espana), 1130, 1630, 1630 (Espana), 1630OU (Espana), 1630VU (Espana), 2030 (Europe), 830 (Europe), 830 (North) America), 930 (Europe), 930VU (Espana)

40 1040 (Espana), 1040 (Europe), 1040V (Espana), 1140 (Espana), 1140 (Europe), 1140F (Espana), 1140V (Espana), 1640 (Espana) (Low clearance), 1640 (Europe) ( Low clearance), 1640F (Espana) (Low clearance), 840 (Europe), 940 (Espana), 940 (Europe), 940V (Espana)

50 1350 (Europe), 1550 (Europe), 1750 (Europe), 1750V (Espana), 1850 (Espana), 1850 (Europe), 1850F (Europe), 1850N (Europe), 1850V (Espana)

Comparison number: AL 39024, AL39024, AT27134

Dimensions given below:

MIZAR number: 66162
