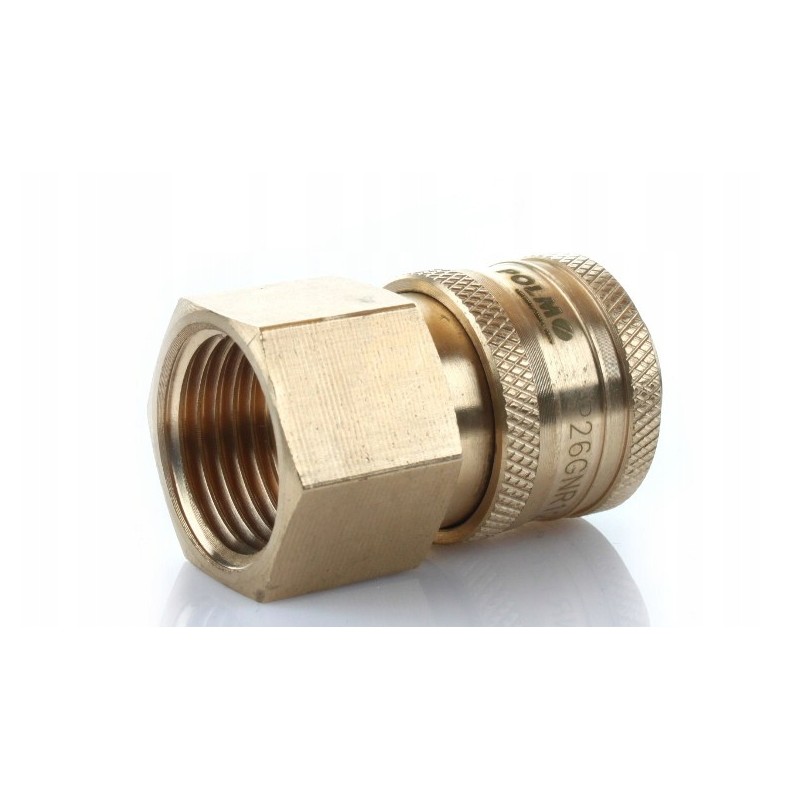

Pneumatic quick connector. P26 NW7.2 socket 1/2'' internal thread MIZAR number: 39805
Pneumatic quick connector P26 NW7.2 socket with 1/2' internal thread
Operating temperature: from - 20°C to +100°C
Max. working pressure: 3.5 Mpa / 35 bar
POLMO - the most popular brass quick connectors with a very wide range of applications. Quick connectors are designed in accordance with dimensional and quality requirements in accordance with the standard EURO profile, which specifies in detail the characteristics and dimensions.
Compatibility of quick connectors produced by different manufacturers in accordance with this standard.
Interchangeable with quick connectors P26 series from: RECTUS, CEJN and others.
Operating temperature: from -20°C to +100°C
Max. operating pressure: 3.5 Mpa / 35 bar
Quick connectors used in agricultural machines and industrial compressors, etc. POLMO quick connectors solve the problem of quickly connecting and disconnecting pneumatic conduits. The spring mechanism makes it easy to connect the plug to the socket with one hand.
Polish product Polmo Gniezno!
Warranty: 2 years
MIZAR number: 39805
