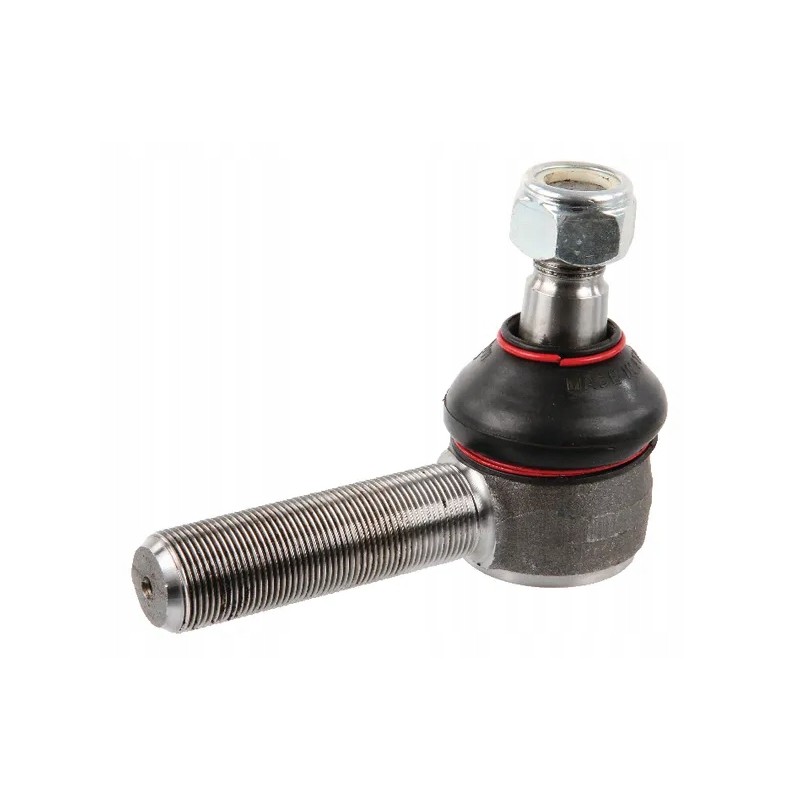

The end of the stick

Tie rod end

Part number: K.SHP259KR

EAN: 8716106430840

Unit: Art

Product description: Rod ends with external thread - overview

CThread diameter - rod side: M24

Thread pitch - rod side: 1.50mm

D1 Minimum seat diameter: 19.7mm D2 Maximum seat diameter: 20.2mm Econe length: 25mm

FThread diameter - short side: M18

Thread pitch - short side: 1.50mm

Working length: 106mm

Total length: 108mm

Thread length - rod side: 76mm

Thread Type - Rod Side: Metric

Thread direction - rod side: Right

Thread length - short side: 24mm Thread type - short side: Metric

Thread direction - short side: Right hand BShead width: 50mm

The product fits the machines:

DEUTZ-FAHR Series 7 Agrotron Agrotron 7200ST Sn.- WSXAB20200LD50001, Agrotron 7200ST Sn.- WSXAB20200LD50001, Agrotron 7220ST Sn.- WSXAB50200LD50001, Agrotron 7220ST Sn.- WSXAB50200LD5000 1, Agrotron 7200ST Sn.- WSXAB20200LD50001, Agrotron 7220ST Sn.- WSXAB50200LD50001

Series Agroprima Agroprima 6.06 Sn.- 7636 / 7637, Agroprima 6.06 Sn.- 7636 / 7637, Agroprima 6.16 Sn.- 7638, Agroprima 6.16 Sn.- 7638, Agroprima 6.06 Sn.- 7636 / 7637, Agroprima 6.16 Sn.- 7638

Series Agrostar TG Agrostar TG 6.71 Sn.- 7843, Agrostar TG 6.71 Sn.- 7843, Agrostar TG 6.81 Sn.- 7844, Agrostar TG 6.81 Sn.- 7844, Agrostar TG 6.71 Sn.- 7843, Agrostar TG 6.81 Sn.- 7 844

Series Agrosun Agrosun 100 Sn.- D33S026AT1001, Agrosun 100 Sn.- D33S026AT1001, Agrosun 120 Sn.- D33S186AT1001, Agrosun 120 Sn.- D33S186AT1001, Agrosun 140 Sn.- D33S416AT100 1, Agrosun 140 Sn.- D33S416AT1001, Agrosun 100 Sn.- D33S026AT1001 , Agrosun 120 Sn.- D33S186AT1001, Agrosun 140 Sn.- D33S416AT1001

Series Agrotrac (TIER 3) Agrotrac 610 Sn.- ZKDY0402W0TD01001, Agrotrac 610 Sn.- ZKDY0402W0TD01001, Agrotrac 620 Sn.- ZKDY0802W0TD01001, Agrotrac 620 Sn.- ZKDY0802W0TD01001, Agrotrac 610 Sn.- ZKDY0402W0TD01001, Agrotrac 620 Sn.- ZKDY0802W0TD01001

Series Agrotrac Agrotrac 115 - D33S156WVT2E10001, Agrotrac 115 - D33S156WVT2E10001, Agrotrac 125 - D33S256WT1001, Agrotrac 125 - D33S256WT1001, Agrotrac 130 Sn.- D33S306WT1001 , Agrotrac 130 Sn.- D33S306WT1001, Agrotrac 150 Sn.- D33S506WVT2E10001, Agrotrac 150 Sn.- D33S506WVT2E10001, Agrotrac 150 Sn.- D33S506WVT2E20001, Agrotrac 150 Sn.- D33S506WVT2E20001, Agrotrac 170 Sn.- D33S706WVT2E10001, Agrotrac 170 Sn.- D33S706WVT2E10001, 110, 110, 110, 110, 110, 130, 130, 130, 150, 150, 150, Agrotrac 115 - D33S156WVT2E10001, Agrotrac 125 - D33S256WT1001, Agrotrac 130 Sn.- D33S306WT1001, Agrotrac 150 Sn.- D33S506WVT2E10001, Agrotrac 150 Sn.- D33S506WVT2E 20001, Agrotrac 170 Sn.- D33S706WVT2E10001

Series Agrotron L Agrotron L710 Sn.- ZKDS8004W0LD10010, Agrotron L710 Sn.- ZKDS8004W0LD10010, Agrotron L710 Sn.- ZKDU0702W0LD10010, Agrotron L710 Sn.- ZKDU0702W0LD10010, Agrotron L720 Sn .- ZKDJ5904W0LD10010, Agrotron L720 Sn.- ZKDJ5904W0LD10010, Agrotron L730 Sn.- ZKDU1002W0LD10010, Agrotron L730 Sn.- ZKDU1002W0LD10010, Agrotron L710 Sn.- ZKDS8004W0LD10010, Agrotron L710 Sn.- ZKDU0702W0LD10010, Agrotron L720 Sn.- ZKDJ5904W0LD100 10, Agrotron L730 Sn.- ZKDU1002W0LD10010

Series Agrotron New Agrotron 195 Sn.- D40S006WVT1001, Agrotron 195 Sn.- D40S006WVT1001, Agrotron 195 Sn.- D40S006WVT1001

Series D06 6806, 7206, 7506, 8006, 9006, 9006, 10006, 10006, 10006, 10006, 10006, 13006, 13006, 13006, 6806, 7206, 7506, 8006, 9 006

Series D07 6807, 7007, 7207, 7807, 6807, 7007, 7207, 7807

Series D07C 6007 C, 6207 C, 6507 C, 6807 C, 7007 C, 7207 C, 7807 C, 4507 C, 4807 C, 5207 C, 6007 C, 6207 C, 6507 C, 6807 C, 7007 C, 7207 C, 7807 C

Series DX 10 - 250 DX 80, 250 DX 85, 250 DX 86, 250 DX 90, 250 DX 92

Series DX 2/4/5/6/7/8 DX 4.10, DX 4.30, DX 4.50, DX 4.70, DX 6.05, DX 6.10, DX 6.30, DX 6.50

Fendt Series Farmer 100 FARMER 102 - Sn. 135/04601-99999, FARMER 103 - Sn. 138/11401-99999, FARMER 104 - Sn. 238/20701-99999, FARMER 105 - Sn. 258/10601-99999, FARMER 108 - Sn. 278/00001-99999, FARMER 5S/106 - Sn. 268/00001-99999, FARMER 5S/106 - Sn. 268/00001-99999

Series Farmer 303-306 Turbomatik Farmer 303 Turbomatik - Sn. 152/00001-99999, Farmer 304 Turbomatik - Sn. 158/00001-03500, Farmer 305 Turbomatik - Sn. 162/00001-07500, Farmer 306 Turbomatik - Sn. 168/00001-11500, Farmer 306 Turbomatik - Sn. 168/11501-13000

Series Favorit 600 Favorit 610 - Sn. 281/00001-99999, Favorit 610 - Sn. 281/00001-99999

Fiat Series 66 70/66 DT, 80/66 DT, 45/66 DT, 70/66 DT, 80/66 DT

Series 76 70/76, 80/76, 45/76, 70/76, 80/76

Series 88 70/88 DT, 80/88 DT, 70/88 DT, 80/88 DT

Series 90 70/90 DT, 80/90 DT, 85/90 DT, 85/90 DT, 90/90 DT, 90/90 DT, 100/90 DT, 100/90 DT, 100/90 DT, 100/90 DT, 100/90 DT, 110/90 DT, 110/90 DT, 110/90 DT, 110/90 DT, 110/90 DT, 115/90 DT, 115/90 DT, 115/90 DT, 115/90 DT, 115/90 DT

Series 80 1180, 1180, 1180, 1180, 1180, 1280, 1280, 1280, 1380, 1380, 1380, 1580, 1580, 1580, 1880, 1880, 1880

Ford Series 4340 - 8340 8240, 8340 8240, 8340 8340, 8340 8340

Hürlimann Series H 345 - H 355 H 496 Turbo

Series H 6130 - H 6160 H 5116 Turbo, H 6160 H 6136 Turbo, H 6160 H 6170 Turbo

Series H Elite H 6115 Elite, H 6115 Elite XB, H 6135 Elite, H 6135 Elite XB

Series H Master H 6165 Master, H 6190 Master

Lamborghini Series 956 - 100 - 1706 956 - 100, 1706 956 - 100

Series Champion Champion 120, Champion 135, Champion 150, Champion 160, Champion 180, Champion 200

Series Formula Formula 115, Formula 115, Formula 135, Formula 135

New Holland Series 40 8240, 8240, 8340, 8340

Series 60 8160, 8260, 8260, 8360, 8360, 8560, 8560

Same Series Antares Antares 110, Antares 110, Antares 130, Antares 130, Antares II 110, Antares II 110, Antares II 130, Antares II 130

Series Galaxy Galaxy 170

Series Iron Iron 175 S, Iron 190 S, Iron 200, Iron 210

Series Iron³ Iron³ 190DCR Sn. ZKDS7802W0LS10010, Iron³ 190DCR Sn. ZKDU0502W0LS10010, Iron³ 210, Iron³ 210DCR Sn. 10010, Iron³ 220 DCR

Steyr Series 6000 CVT 6130 CVT

Series CVT 05-2015 6150 Tier 4B - 05/2015, 6165 Tier 4B - 05/2015, 6175 Tier 4B - 05/2015

Series ET Profi 07-2016 6145 Tier 4B - 07/2016

Series ET Profi Classic 07-16 6145 Tier 4B - 07/2016

Series Profi 6115 Profi, 6125 Profi, 6135 Profi, 6140 Profi

Series Profi Classic 6125 Tier 4 - 2/12, 6140 Tier 4 - 2/12

Series Profi Ecotech 6125 Tier 4 - 2/2012, 6140 Tier 4 - 2/2012
