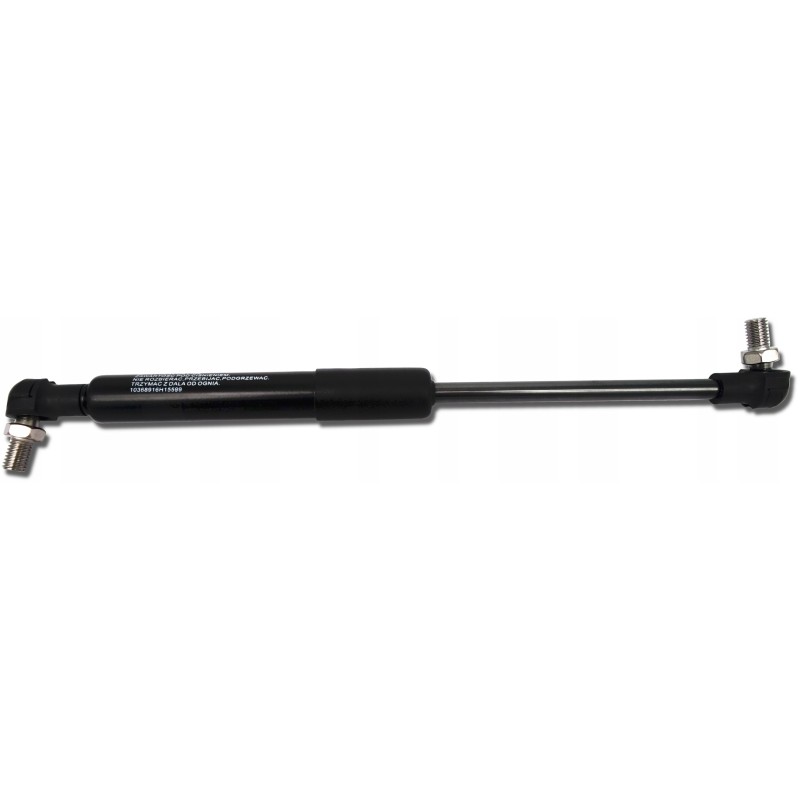

Spring telescope gas actuator 275mm 150n zetor

Gas actuator for doors, rear window and sunroof of ZETOR tractors. SKRAW-MET code: [3177]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with ZETOR tractors in the following models:

Forterra8621, 8641

Proxima8421, 8441

UR I7711, 7711T, 7745, 7745H, 7745T

UR II8011, 8045, 8111, 8145, 8211, 8245, 9111, 9145, 9211, 9245

UR III10520, 10540, 7520, 7540, 8520, 8520, 8 540

Gas actuators are adapted depending on the model for use in: agricultural machines, tractors, sprayers, axles, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors, rear windows and sunroofs of ZETOR tractors.

Technical specifications: Length cylinder folded: 190mm

Length of cylinder extended: 275 mm

Cylinder stroke: 85 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Mounting screws: M8x1.25

Temperature range: -20°C to +70°C

Dimensions (m .among others folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation .

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
