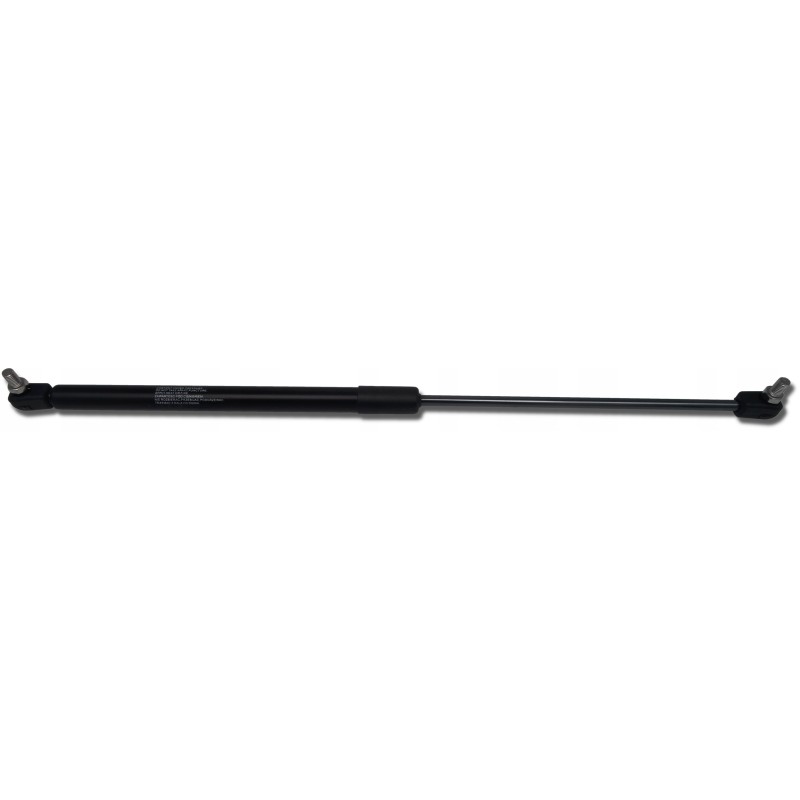

Spring gas actuator 525mm 100n zetor door

Door gas actuator in ZETOR tractors SKRAW-MET code: [3210]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with ZETOR tractors

Forterra8621, 8641

Proxima8421, 8441

UR I7711, 7711T, 7745, 7745H, 7745T

UR II8011, 8045, 8111, 8145, 8211, 8245, 9111, 9145, 9211, 9245

UR III10520, 10540, 7520, 7540, 8520, 8520, 8540

Gas cylinders are adapted, depending on the model, to work in: agricultural machines nothing, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors of ZETOR tractors.

Technical specifications: Length of the folded actuator: 300 mm

Length of the unfolded actuator: 525 mm

Actuator stroke: 225mm

Piston diameter: 8mm

Cylinder diameter: 18mm

Fixing pin thread: M8x1.25

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide application and versatility, from agricultural machinery for furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
