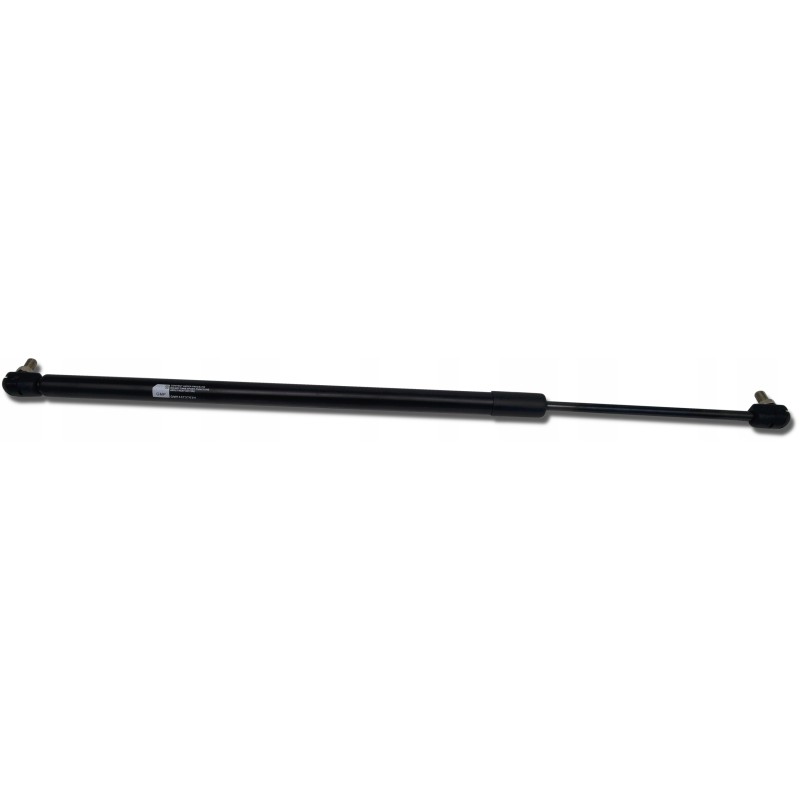

Spring gas actuator 500mm 300n Deutz door

DEUTZ door gas actuator SKRAW-MET code: [3196]___________________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with DEUTZ tractors:

Agroprima4.31, 4.51, 4.56, 6.06, 6.16

Agroxtra3.57, 4.07, 4.17, 4.47 , 4.57, 6.07, 6.17

DX33.10 SC, 3.30SC, 3.50SC, 3.60SC, 3.65SC, 3.70SC, 3.80SC, 3.90SC

Depending on the model, gas actuators are adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors of DEUTZ tractors.

Technical specifications: Length of the folded actuator: 300 mm

Length of the unfolded actuator: 500 mm

Actuator stroke : 200mm

Piston diameter: 8mm

Cylinder diameter: 18mm

Mounting pin diameter: M8x1.25

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide application and versatility, from agricultural machines for furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
