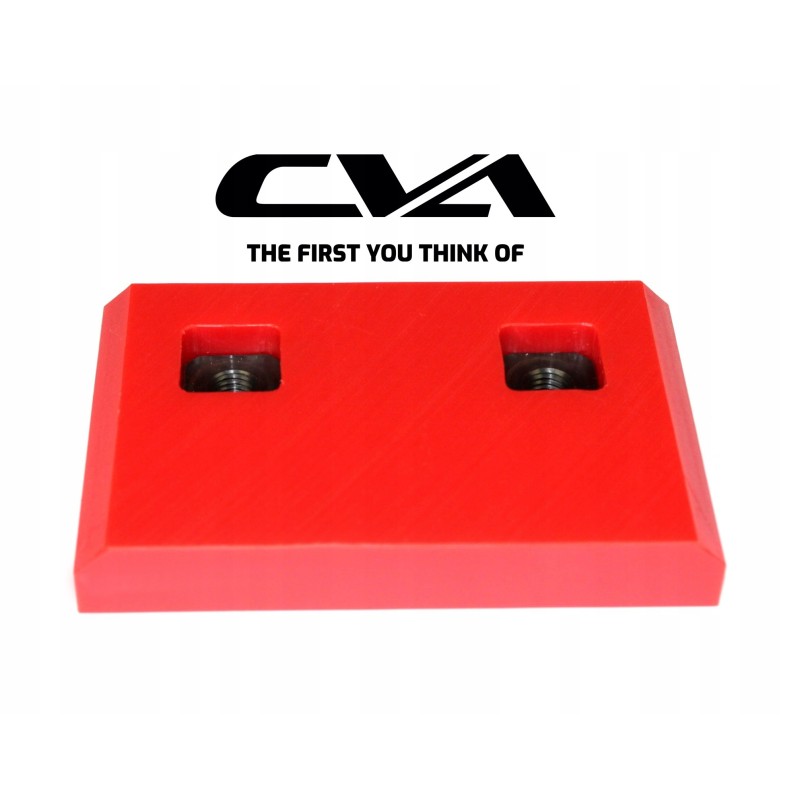

Slide of the cva arm of the JCB telescope loader 22 mm

CVA ARM SLIDE OF JCB TELESCOPE CHARGER 22 MM *Product description:

Arm extension slide used in JCB construction machines.

Dimensions:

Length: 150mm

Width: 95.3mm

Thickness: 22mm

Bolt spacing: 80mm

Screw size: M12

CVA product!

The glides are made of Polyamide.

It is characterized by good mechanical properties, abrasion resistance and a low coefficient of friction.

The great advantage of polyamides is their shape stability at elevated temperatures.

Moreover, they are resistant to gasoline and solvents.

They demonstrate very high stiffness and high dimensional stability.

The glides are made of one element. TURNED. The glides are not made by injection molding!!!

Features:

- abrasion resistant,

- low coefficient of friction,

- good sliding properties,

- dimensional stability at large temperature changes,

- vibration damping

- very high impact strength even at low temperatures - good chemical resistance, e.g. to oils, fats, gasoline, etc.

Machine models:

527-58, 530, 532, 533-105, 535-140, 535-95, 536-60, 537, 550-140, 531-70, 541-70, 540, 540-140.

*Comparison number: 160/00991 DZ

*Category:Base/Home/PARTS CATALOG/Slides/Telescope Slides
