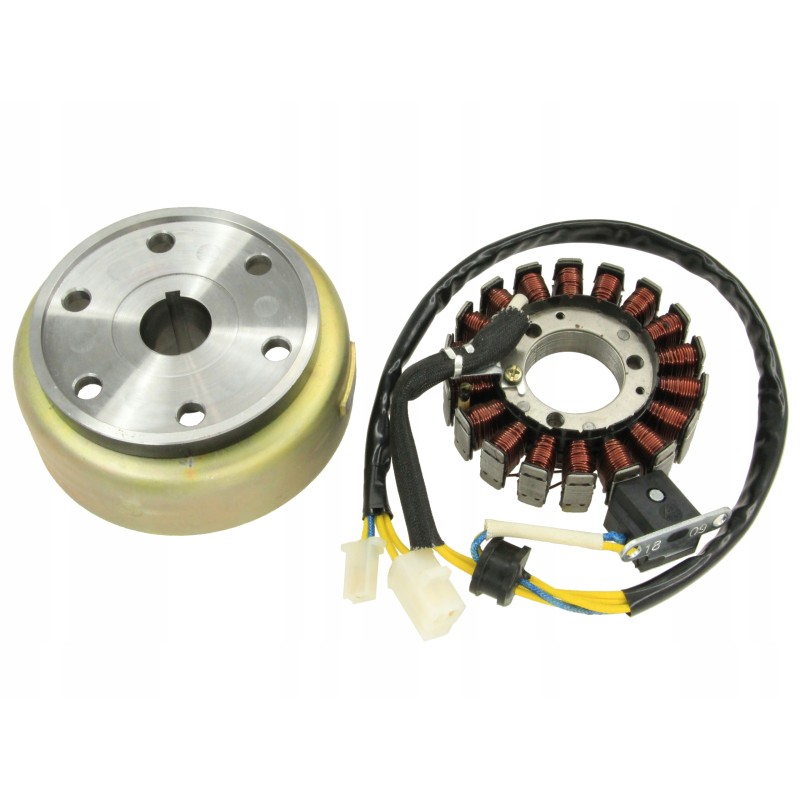

Igniter stator coil 93mm magneto wheel magneto atv quad linhai 260 300

Stator / magneto with a magnet wheel, the so-called small - 93 mm, for ATV 260/300 cc. Helpful information:

Magneto:

Outer diameter 93 mm

Inner diameter 35 mm

Spacing of magneto mounting holes from/to the center of the mounting 38 mm

Stator mounted with three screws M6

Shaft position sensor mounted with two M5 screws

Spacing of shaft position sensor mounting holes from/to the center of mounting 36mm

Magnet wheel:

Inner diameter 95mm

Outer diameter 119mm

Diameter for clutch / bendix 91mm

Height total 50mm

Width under the wedge 5mm

Possible applications:

LINHAI 260, LINHAI 300, BENYCO 300 and more.
