Universal magneto for a 50cc 4t moped

Universal magneto for a 50cc 4T moped 5906312704795

Universal magneto for a 50cc 4T moped: 8 coils, 5 wiresMoped magneto

Moretti Parts are the highest quality enclosed in larger and smaller elements. When taking care of our bikes, it is worth relying on experience and replacing parts with proven ones. Moretti gains an increasing number of satisfied customers every year. All our parts undergo a series of inspections and tests to provide you with the best products.

General description:

universal magneto (stator) for a moped with a 50 cm3 FMB engine

number of magneto wires: 5

number of magneto coils: 8

number of pulser wires : 2

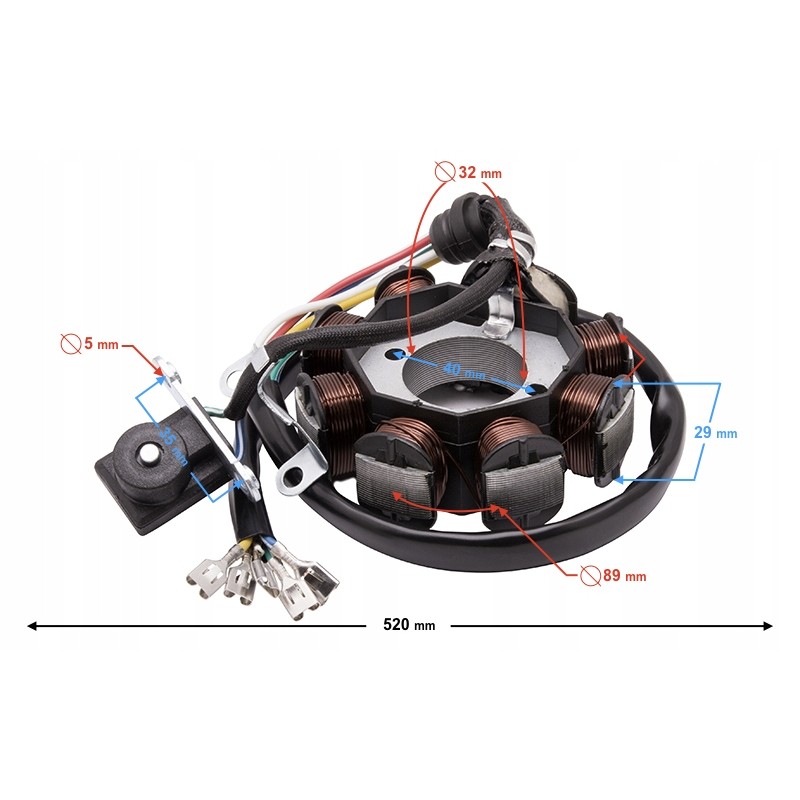

Dimensions:

cable length: 520 mm (100 mm pulser)

stator outer diameter: 89 mm

stator mounting hole spacing: 40 mm

stator mounting hole diameter: 6 mm

stator inner diameter: 32 mm

spacing of the pulser mounting holes: 35 mm

diameter of the pulser mounting holes: 5 mm

The set includes:

magnet (1 piece)

Fits models:

- Universal magneto (stator) for a moped with an engine FMB 50 cm
