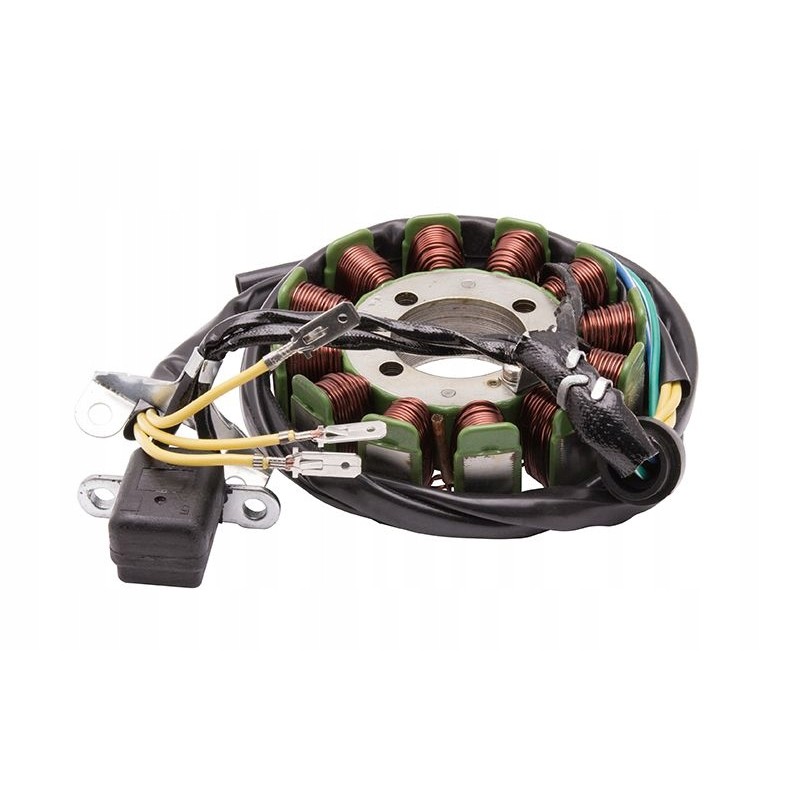

Stator magneto 4t 250cc 12 coils atv
  • Stator magneto 4t 250cc 12 coils atv
  • Stator magneto 4t 250cc 12 coils atv
  • Stator magneto 4t 250cc 12 coils atv

Stator magneto 4t 250cc 12 coils atv

15014029426507
£43.32
Quantity
5 Items

Description
Igniter, stator 4T 250cc 12 coils ATV Manufacturer: Moretti

Product description:

Igniter (stator) for ATV 250 cm3 4T,

number of magneto wires: 5

cable length: 60 cm (45 cm pulser)

number of magneto coils: 12

number of pulser wires: 2

Stator outer diameter: 88 mm

max. stator width: 31 mm

spacing of stator mounting holes: 40 mm

diameter of stator mounting holes: 5.8 mm

spacing of pulser mounting holes: 35 mm

diameter of the pulser mounting holes: 5.5 mm

Moretti Parts are the highest quality enclosed in larger and smaller elements. When taking care of our bikes, it is worth relying on experience and replacing parts with proven ones. Moretti gains an increasing number of satisfied customers every year. All our parts undergo a series of inspections and tests to provide you with the best products.

The photo included in the auction always shows the full composition of the set.

If dimensions are given in the auction, be sure to verify them with your original part. This will allow us to avoid returns and thus save us all additional work, responsibilities and costs associated with handling returns.

Product Details
15014029426507
ISKATRZ12504TJOY012
5 Items
New

Data sheet

Part Number
ISKATRZ12504TJOY012
Product weight with unit packaging
2 kg
Adaptation to the vehicle
universal product
