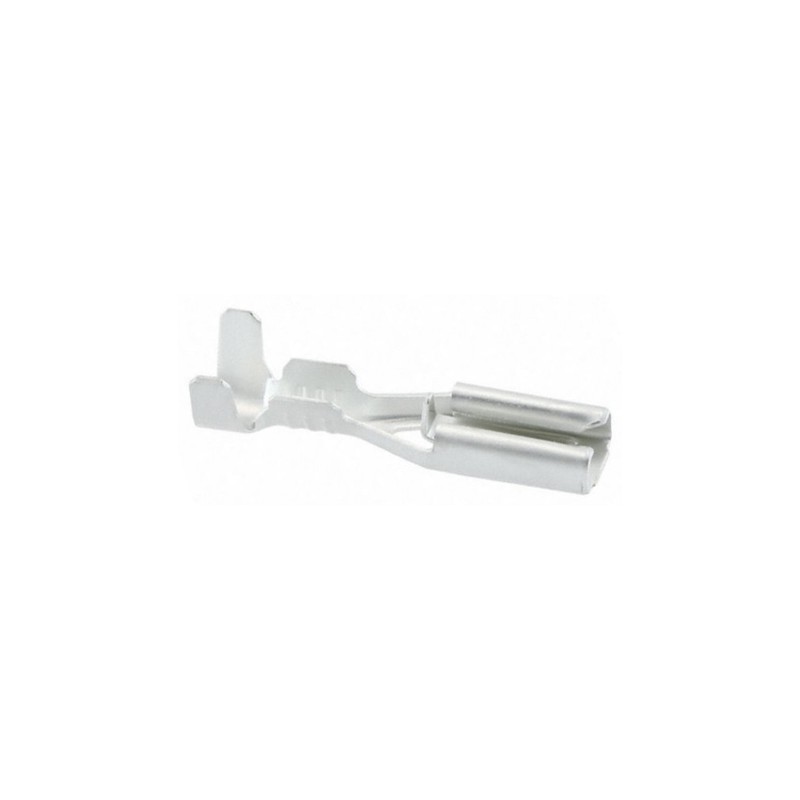

100 pcs - 1742975-1 TE Connectivity Positive Lock .110 Mk III Female Spade Connector, Receptacle, 2.79 x 0.81mm Tab Size, 0.3mm²

TE Connectivity Positive Lock 110 Mark III Crimp ReceptaclesPositive Lock 110 Mark III crimp receptacles designed for use in electronic gas igniter applications. These Positive Lock 110 Mark III crimp receptacles have a fast connect and disconnect action and a low insertion and withdrawal force. The mating tabs can be smoothly and easily inserted and removed with minimal damage. These Positive Lock receptacles feature a positive locking system that ensures easy mating and a good mechanical locking force. A spring on the receptacle engages with a ramp in the connector housing and prevents disconnection when the wire is pulled. A locking latch on the receptacle engages in a locking hole in the mating tab terminal for a secure connection. When the tab is inserted into the receptacle an audible ’snap’ is produced to confirm a secure connection. The enhanced surface design of these Positive Lock 110 Mark III crimp receptacles helps provide an excellent electrical performance. These Positive Lock 110 Mark III crimp receptacles are designed for use in the Positive Lock 110 Mark III receptacle housingsFeatures and Benefits• Positive Locking mechanism for secure mating• Fast connect and disconnect• Low insertion and withdrawal force• Audible ’snap’ for mating confirmation• Enhanced contact surface designProduct Application InformationPositive Lock 110 Mark III crimp receptacles and housings are designed for use in electronic gas igniter applications. These applications include cooking ranges, gas grills and other applications where a gas flame needs to be ignitedTE Connectivity Positive Lock Range
