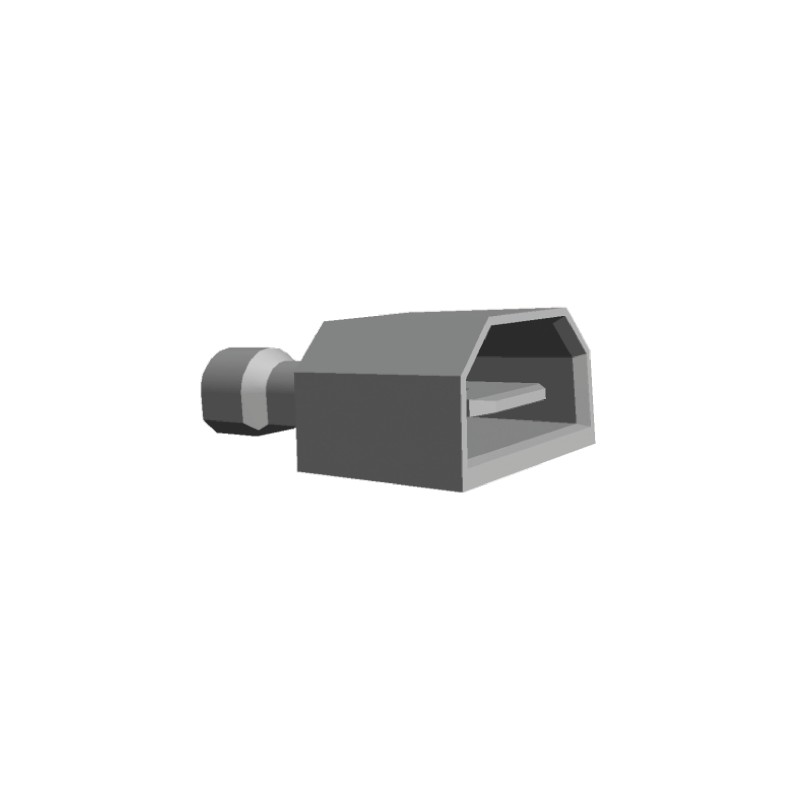

    50 pcs - 2-521055-2 TE Connectivity Ultra-Fast Plus .250 Red Insulated Male Spade Connector, Tab, 6.35 x 0.81mm Tab Size, 0.3mm²
    • 50 pcs - 2-521055-2 TE Connectivity Ultra-Fast Plus .250 Red Insulated Male Spade Connector, Tab, 6.35 x 0.81mm Tab Size, 0.3mm²

    50 pcs - 2-521055-2 TE Connectivity Ultra-Fast Plus .250 Red Insulated Male Spade Connector, Tab, 6.35 x 0.81mm Tab Size, 0.3mm²

    50(Allparts)7188157
    50 pcs - 2-521055-2 TE Connectivity Ultra-Fast Plus .250 Red Insulated Male Spade Connector, Tab, 6.35 x 0.81mm Tab Size, 0.3mm² to 0.8mm²
    £36.56
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TE Connectivity FASTON 250 Series Ultra-Fast Plus Tab Crimp TerminalFASTON 250 series Ultra-Fast Plus fully insulated tab crimp terminals designed to prevent shock and electrical short circuits from exposed leads. The housings of these FASTON 250 series Ultra-Fast plus tab crimp terminals completely enclose a tin plated copper alloy FASTON tab contact which is recessed within the housing to allow its use in 600V applications. The tab and wire barrel part of the housing is made from type 6/6 nylon whilst the insulation barrel is made from premium grade nylon with minimum spring-back which retains the insulation crimp shape and provides strain relief. These FASTON 250 series Ultra-fast plus crimp terminals terminate 26-10 AWG solid, fused and stranded wire.TE Connectivity Ultra-Fast and Ultra-Fast Plus Terminals
    Product Details
    TE Connectivity
    50(Allparts)7188157
    2-521055-2
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Colour
    red
    Contact material
    brass
    Contact plating
    Tin
    A-Supplier
    Allparts-UK/15/R-10
    Series
    Ultra-Fast Plus .250
    Type
    Tab
    Gender
    Male
    Termination Method
    Crimp
