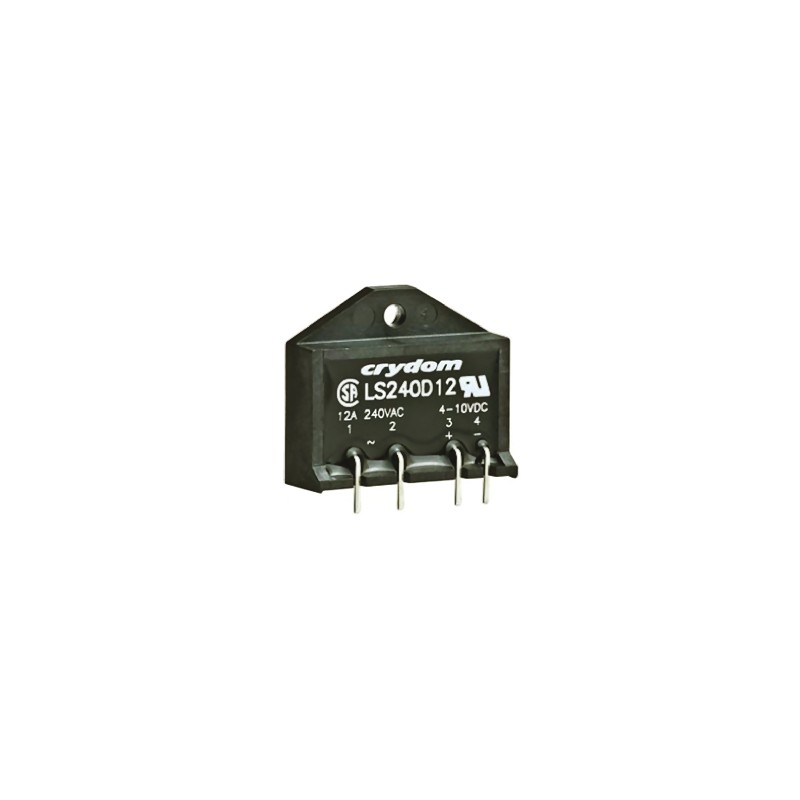

10 pcs - Sensata / Crydom Solid State Relay, 12 A Load, PCB Mount, 280 V rms Load, 10 V dc Control
  • 10 pcs - Sensata / Crydom Solid State Relay, 12 A Load, PCB Mount, 280 V rms Load, 10 V dc Control

10 pcs - Sensata / Crydom Solid State Relay, 12 A Load, PCB Mount, 280 V rms Load, 10 V dc Control

Allparts-UK/15/R/738-5604P
£616.40
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/738-5604P
LS240D12R

Data sheet

Manufacturer
SENSATA / CRYDOM
Dimensions
35.5 x 13.1 x 31mm
Height
31mm
Length
35.5mm
Depth
13.1mm
A-Supplier
Allparts-UK-R
Terminal Type
Through Hole
Maximum Operating Temperature
+80°C
Mounting Type
PCB Mount
Minimum Operating Temperature
-30°C
Contact Configuration
SPST
Operating Temperature Range
-30 - +80°C
Maximum Load Current
12 A
Maximum Load Voltage
280 V rms
Minimum Load Voltage
24 V rms
Switching Type
Instantaneous
Minimum Load Current
0.15 A rms
Output Device
SCR
Maximum Control Voltage
10 V dc
Minimum Control Voltage
4 V dc
Control Voltage Range
4 - 10 V dc
Load Voltage Range
24 - 280Vrms
Off State Leakage Current
0.1mA rms
Maximum Turn On Time
1/2 cycle
