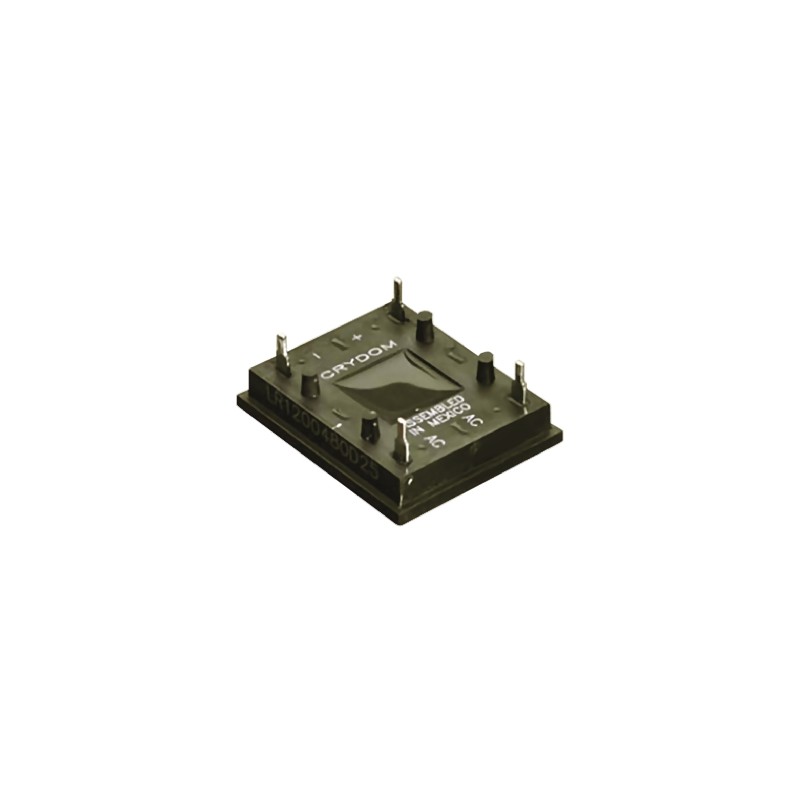

10 pcs - Sensata / Crydom LR Series Solid State Relay, 40 A Load, PCB Mount, 530 V rms Load, 32 V dc Control
  • 10 pcs - Sensata / Crydom LR Series Solid State Relay, 40 A Load, PCB Mount, 530 V rms Load, 32 V dc Control

10 pcs - Sensata / Crydom LR Series Solid State Relay, 40 A Load, PCB Mount, 530 V rms Load, 32 V dc Control

Allparts-UK/15/R/738-5597P
£855.33
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/738-5597P
LR600240D40

Data sheet

Manufacturer
SENSATA / CRYDOM
Capacitance
8pF
Dimensions
35 x 28.4 x 6.3mm
Height
6.3mm
Length
35mm
Depth
28.4mm
A-Supplier
Allparts-UK-R
Series
LR
Terminal Type
Through Hole
Maximum Operating Temperature
+80°C
Mounting Type
PCB Mount
Minimum Operating Temperature
-30°C
Standards Met
CE, RoHS Compliant
Special Features
Optional Mounting Clip Available
Operating Temperature Range
-30 - +80°C
Maximum Load Current
40 A
Maximum Load Voltage
530 V rms
Minimum Load Voltage
48 V rms
Switching Type
Zero Cross
Minimum Load Current
0.15 A rms
Output Device
SCR
Maximum Control Voltage
32 V dc
Minimum Control Voltage
4 V dc
Control Voltage Range
4 - 32 V dc
Load Voltage Range
48 - 530Vrms
Off State Leakage Current
0.1mA rms
Maximum Turn On Time
1/2 cycle
Relay Type
Solid State Relay
