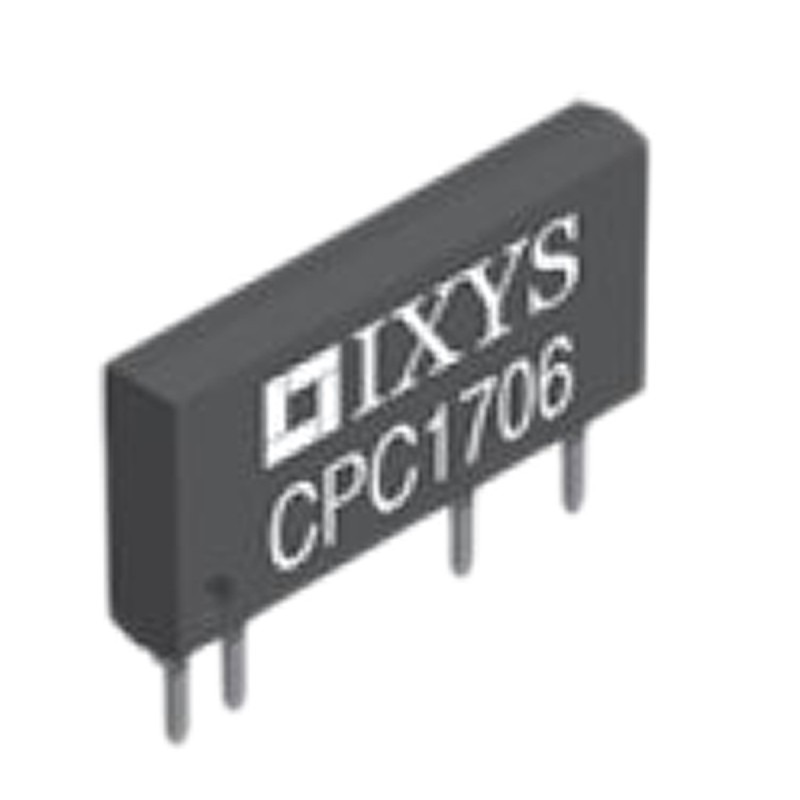

    5 pcs - IXYS Solid State Relay, ±4 A dc Load, PCB Mount
    • 5 pcs - IXYS Solid State Relay, ±4 A dc Load, PCB Mount

    5 pcs - IXYS Solid State Relay, ±4 A dc Load, PCB Mount

    electronicparts-UK/15/R/906-1079
    IXYS
    £47.76
    Delivery: 4-7 business days
    Quantity
    725 Items

    Product Details
    IXYS
    electronicparts-UK/15/R/906-1079
    CPC1706Y
    725 Items

    Data sheet

    Manufacturer
    IXYS
    Capacitance
    75pF
    Dimensions
    21.082 x 3.302 x 10.16mm
    Height
    10.2mm
    Length
    21.1mm
    Depth
    3.3mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    CSA, UL 508 Approved File No E69938
    Contact Configuration
    SPST
    Special Features
    Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    ±4 A dc
    Switching Type
    DC
    Output Device
    MOSFET
    Off State Leakage Current
    1 μA
    Maximum Turn On Time
    5ms
    Relay Type
    OptoMOS
