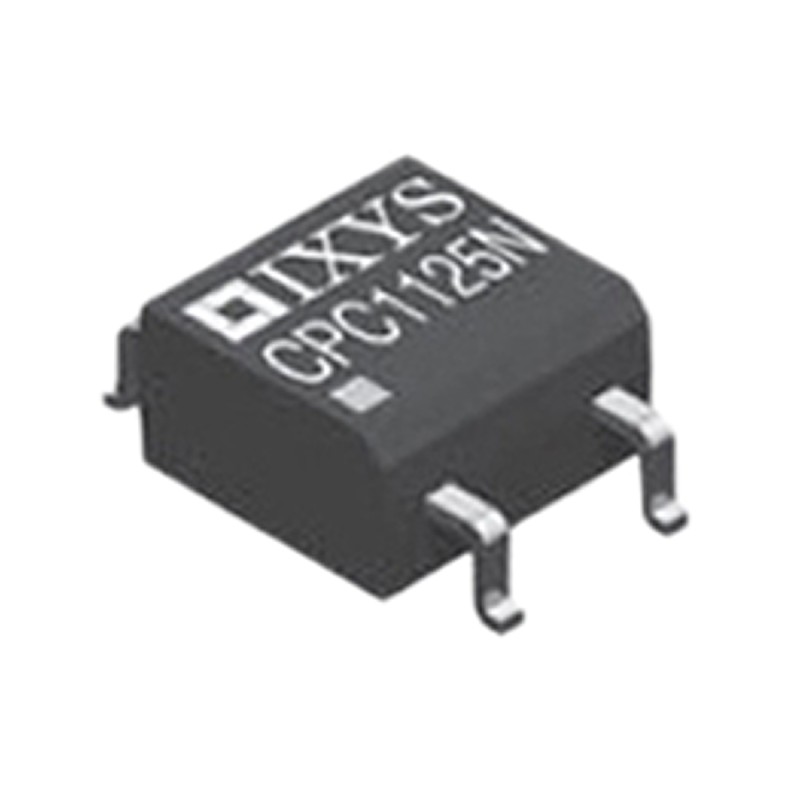

    5 pcs - IXYS Solid State Relay, 100 mA Load, Surface Mount
    • 5 pcs - IXYS Solid State Relay, 100 mA Load, Surface Mount

    5 pcs - IXYS Solid State Relay, 100 mA Load, Surface Mount

    electronicparts-UK/15/R/906-1048
    IXYS
    £23.98
    Delivery: 4-7 business days
    Quantity
    610 Items

    Product Details
    IXYS
    electronicparts-UK/15/R/906-1048
    CPC1125N
    610 Items

    Data sheet

    Manufacturer
    IXYS
    Capacitance
    6pF
    Dimensions
    4.089 x 3.81 x 2.1203mm
    Height
    2.1mm
    Length
    4.1mm
    Depth
    3.8mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    CSA, EN60950-1: 2006, IEC 60950-1: 2005, TUV Certificate B 09 07 49410 006, UL File E76270
    Contact Configuration
    SP-NC
    Special Features
    Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    100 mA
    Switching Type
    DC
    Output Device
    Relay
    Off State Leakage Current
    5 μA
    Maximum Turn On Time
    2ms
    Relay Type
    OptoMOS
