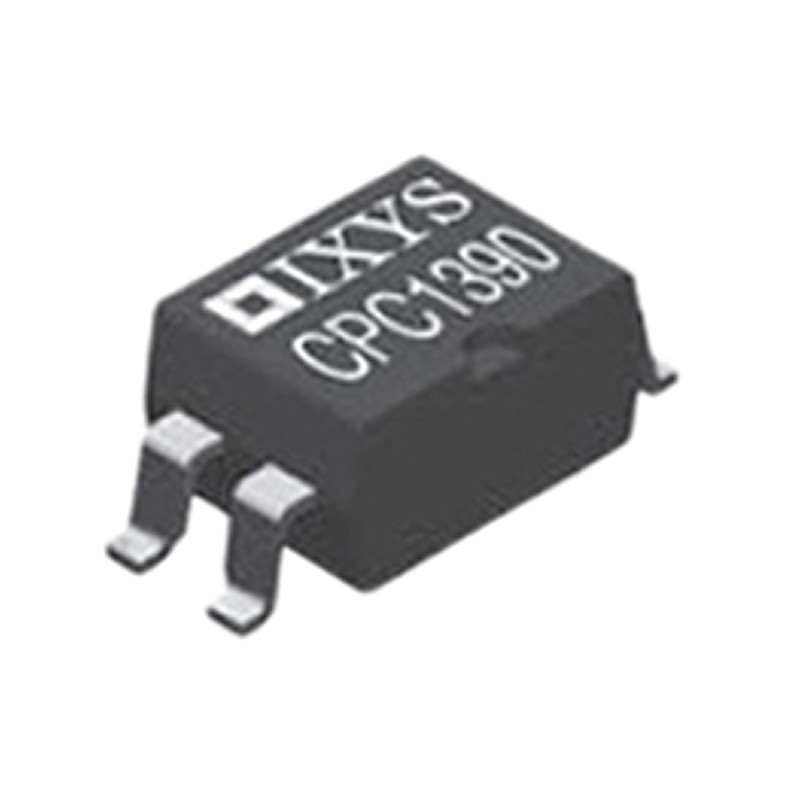

    5 pcs - IXYS Solid State Relay, 140 mA Load, Surface Mount
    • 5 pcs - IXYS Solid State Relay, 140 mA Load, Surface Mount

    5 pcs - IXYS Solid State Relay, 140 mA Load, Surface Mount

    Allparts-UK/15/R/906-1057
    IXYS
    £27.66
    Delivery: 4-7 business days
    Quantity
    130 Items

    Product Details
    IXYS
    Allparts-UK/15/R/906-1057
    CPC1390GR
    130 Items

    Data sheet

    Manufacturer
    IXYS
    Capacitance
    13pF
    Dimensions
    6.35 x 4.572 x 3.3mm
    Height
    3.3mm
    Length
    6.4mm
    Depth
    4.6mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    Certificate TUV B 10 05 49410 006, CSA, EN/IEC, UL File E76270
    Contact Configuration
    SPST
    Special Features
    Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    140 mA
    Switching Type
    DC
    Output Device
    MOSFET
    Off State Leakage Current
    1 μA
    Maximum Turn On Time
    1ms
    Relay Type
    OptoMOS
