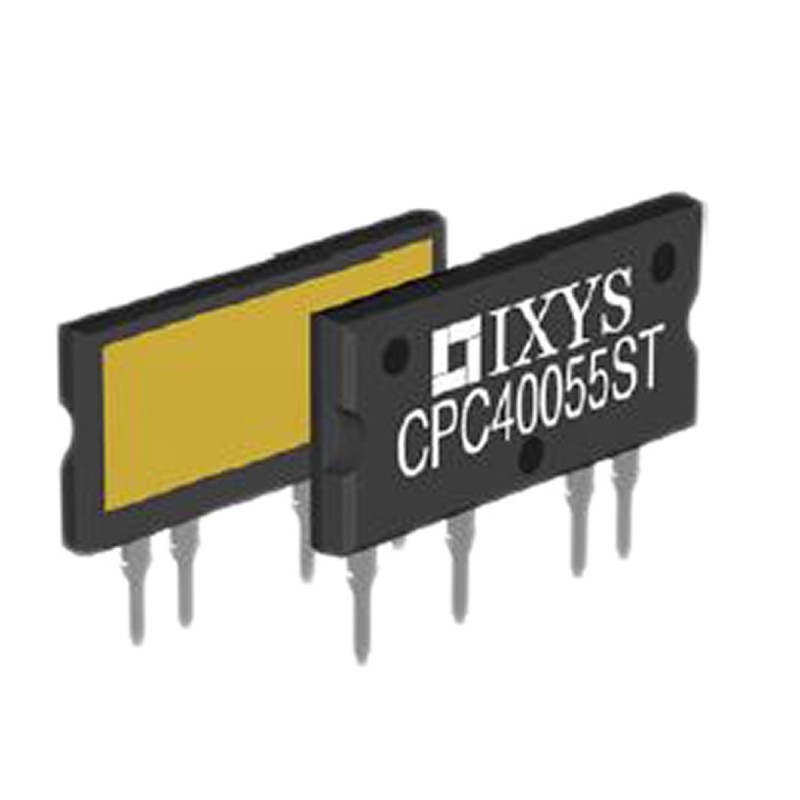

    1 pcs - IXYS Solid State Relay, 40 A rms Load, PCB Mount, 280 V rms ac Control
    • 1 pcs - IXYS Solid State Relay, 40 A rms Load, PCB Mount, 280 V rms ac Control

    1 pcs - IXYS Solid State Relay, 40 A rms Load, PCB Mount, 280 V rms ac Control

    Allparts-UK/15/R/906-1102
    IXYS
    £32.54
    Delivery: 4-7 business days
    Quantity
    76 Items

    Product Details
    IXYS
    Allparts-UK/15/R/906-1102
    CPC40055ST
    76 Items

    Data sheet

    Manufacturer
    IXYS
    Capacitance
    3pF
    Dimensions
    38.1 x 3.807 x 17.78mm
    Height
    17.8mm
    Length
    38.1mm
    Depth
    3.8mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    E3 Certificate, UL 508 Approved File No E69938, UL Recognized
    Contact Configuration
    SP-NC
    Special Features
    AC Output, DC Control, High Noise Immunity, Low EMI and RFI Generation, Machine Insertable, Optically Isolated, TTL & CMOS Compatible, Wave Solderable, Zero Crossing Switching
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    40 A rms
    Switching Type
    AC
    Minimum Load Current
    0.1 A rms
    Output Device
    Power Switch
    Maximum Control Voltage
    280 V rms ac
    Minimum Control Voltage
    20 V rms ac
    Control Voltage Range
    20 - 280 V rms ac
    Off State Leakage Current
    100 μA
    Maximum Turn On Time
    0.5 cycles
    Relay Type
    Power Relay
