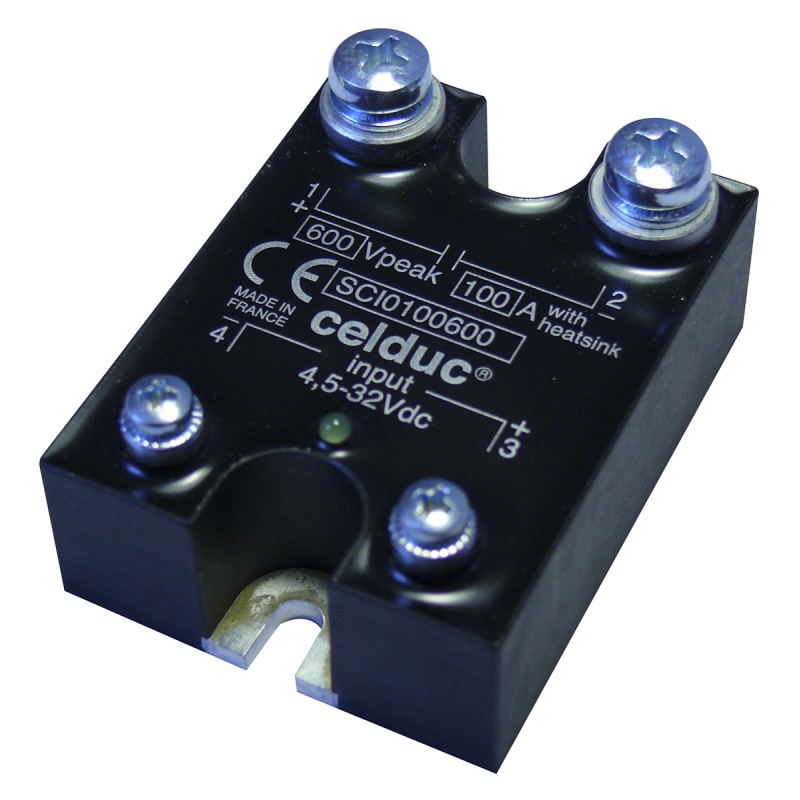

1 pcs - Celduc SCI Series Solid State Relay, 100 A Load, Panel Mount, 600 V dc Load, 32 V dc Control
  • 1 pcs - Celduc SCI Series Solid State Relay, 100 A Load, Panel Mount, 600 V dc Load, 32 V dc Control

1 pcs - Celduc SCI Series Solid State Relay, 100 A Load, Panel Mount, 600 V dc Load, 32 V dc Control

Allparts-UK/15/R/917-4709
CELDUC
£914.87
Quantity
Out-of-Stock

Product Details
CELDUC
Allparts-UK/15/R/917-4709
SCI0100600

Data sheet

Manufacturer
CELDUC
Dimensions
44.5 x 58.2 x 27mm
Height
27mm
Length
44.5mm
Range
SCI
Depth
58.2mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
SCI
Terminal Type
Screw
Maximum Operating Temperature
+90°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE
Special Features
Latest High Voltage IGBT Technology Generation, New Innovative Isolated Driver Ensuring Fast Power Transistor Turn on and Off Therefore Low Power Transient, Ultra Low Output Leakage Current, Low Control Current Consumption, Triggered Control Input to Avoi
Operating Temperature Range
-40 - +90°C
Maximum Load Current
100 A
Maximum Load Voltage
600 V dc
Minimum Load Voltage
0 V dc
Switching Type
DC
Minimum Load Current
0 A
Output Device
IGBT
Maximum Control Voltage
32 V dc
Minimum Control Voltage
4.5 V dc
Control Voltage Range
4.5 - 32 V dc
Load Voltage Range
0 - 600V dc
Off State Leakage Current
1 mA
Maximum Turn On Time
0.01ms
Relay Type
DC
