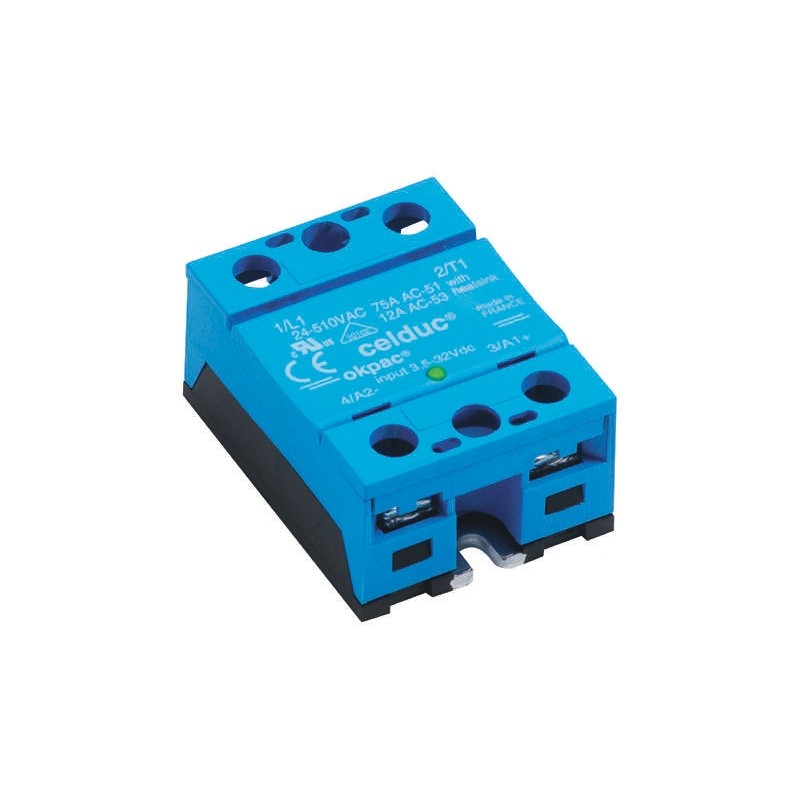

1 pcs - Celduc SO7 Series Solid State Relay, 125 A Load, Panel Mount, 510 V rms Load, 32 V Control
  • 1 pcs - Celduc SO7 Series Solid State Relay, 125 A Load, Panel Mount, 510 V rms Load, 32 V Control

1 pcs - Celduc SO7 Series Solid State Relay, 125 A Load, Panel Mount, 510 V rms Load, 32 V Control

Allparts-UK/15/R/499-0749
CELDUC
£329.69
Quantity
Out-of-Stock

Product Details
CELDUC
Allparts-UK/15/R/499-0749
SO769090

Data sheet

Manufacturer
CELDUC
Dimensions
58.5 x 45 x 30mm
Height
30mm
Length
58.5mm
Range
okpac
Depth
45mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
SO7
Terminal Type
Screw
Maximum Operating Temperature
+100°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE, VDE, cURus 100kA, EAC
Operating Temperature Range
-40 - +100°C
Maximum Load Current
125 A
Maximum Load Voltage
510 V rms
Minimum Load Voltage
24 V ac
Switching Type
Random
Minimum Load Current
5 mA
Output Device
Thyristor
Maximum Control Voltage
32 V
Control Voltage Range
3.5 - 32 V dc
Load Voltage Range
24 - 510V ac
Maximum Turn On Time
0.1ms
Relay Type
Single Phase Solid State Relay
