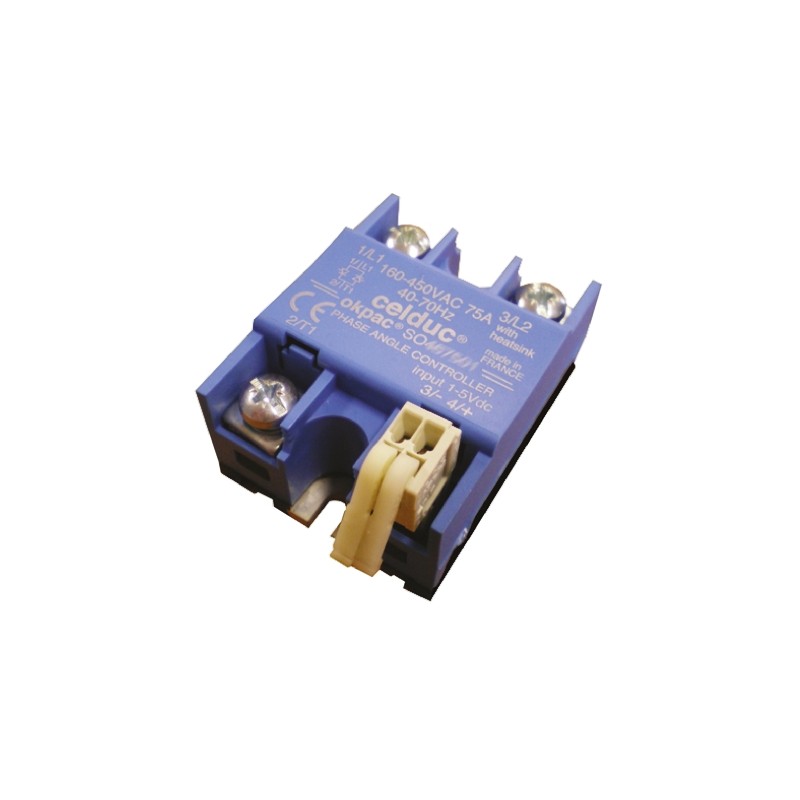

1 pcs - Celduc SO3 Series Solid State Relay, 75 A Load, Panel Mount, 450 V ac Load, 10 V dc Control
  • 1 pcs - Celduc SO3 Series Solid State Relay, 75 A Load, Panel Mount, 450 V ac Load, 10 V dc Control

1 pcs - Celduc SO3 Series Solid State Relay, 75 A Load, Panel Mount, 450 V ac Load, 10 V dc Control

Allparts-UK/15/R/776-7719
CELDUC
£411.70
Quantity
Out-of-Stock

Product Details
CELDUC
Allparts-UK/15/R/776-7719
SO367001

Data sheet

Manufacturer
CELDUC
Dimensions
58.5 x 45 x 30mm
Height
58.5mm
Length
58.5mm
Range
SO3
Depth
30mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
SO3
Terminal Type
Screw
Maximum Operating Temperature
+90°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE, EAC
Special Features
IP20 Protection By Flaps On Terminals, Yellow LED Visualization On The Input
Operating Temperature Range
-40 - +90°C
Maximum Load Current
75 A
Maximum Load Voltage
450 V ac
Minimum Load Voltage
160 V ac
Switching Type
Burst Fire Control
Output Device
Thyristor
Maximum Control Voltage
10 V dc
Minimum Control Voltage
0 V dc
Control Voltage Range
0 - 10 V
Load Voltage Range
160 - 450V
Off State Leakage Current
2 mA
Maximum Turn On Time
160ms
Relay Type
Single Phase
