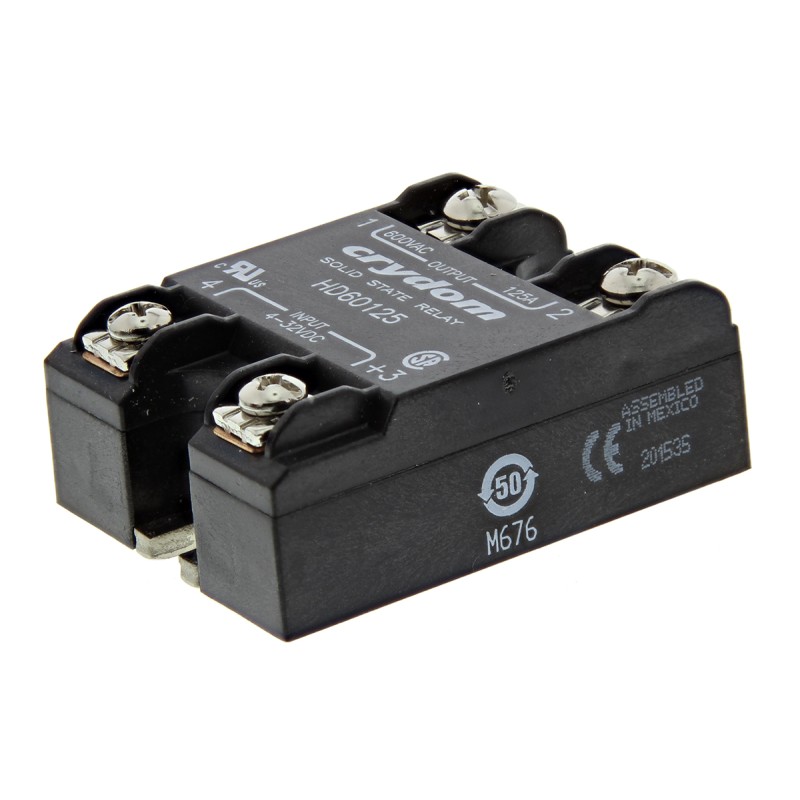

1 pcs - Sensata / Crydom HA AND HD SERIES Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 32 V Control
  • 1 pcs - Sensata / Crydom HA AND HD SERIES Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 32 V Control
  • 1 pcs - Sensata / Crydom HA AND HD SERIES Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 32 V Control

1 pcs - Sensata / Crydom HA AND HD SERIES Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 32 V Control

Allparts-UK/15/R/291-2264
£300.48
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/291-2264
HD60125

Data sheet

Manufacturer
SENSATA / CRYDOM
Capacitance
8pF
Dimensions
58.4 x 45.7 x 23mm
Height
23mm
Length
58.4mm
Depth
45.7mm
A-Supplier
Allparts-UK-R
Series
HA AND HD SERIES
Terminal Type
Screw
Maximum Operating Temperature
+80°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE, CSA
Operating Temperature Range
-40 - +80°C
Maximum Load Current
125 A
Maximum Load Voltage
660 V ac
Minimum Load Voltage
48 V ac
Switching Type
Zero Cross
Minimum Load Current
150 mA
Output Device
SCR
Maximum Control Voltage
32 V
Minimum Control Voltage
4 V ac/dc
Control Voltage Range
3 - 32 V dc
Load Voltage Range
48 - 660V ac
Off State Leakage Current
1 mArms
Maximum Turn On Time
1/2 cycle
