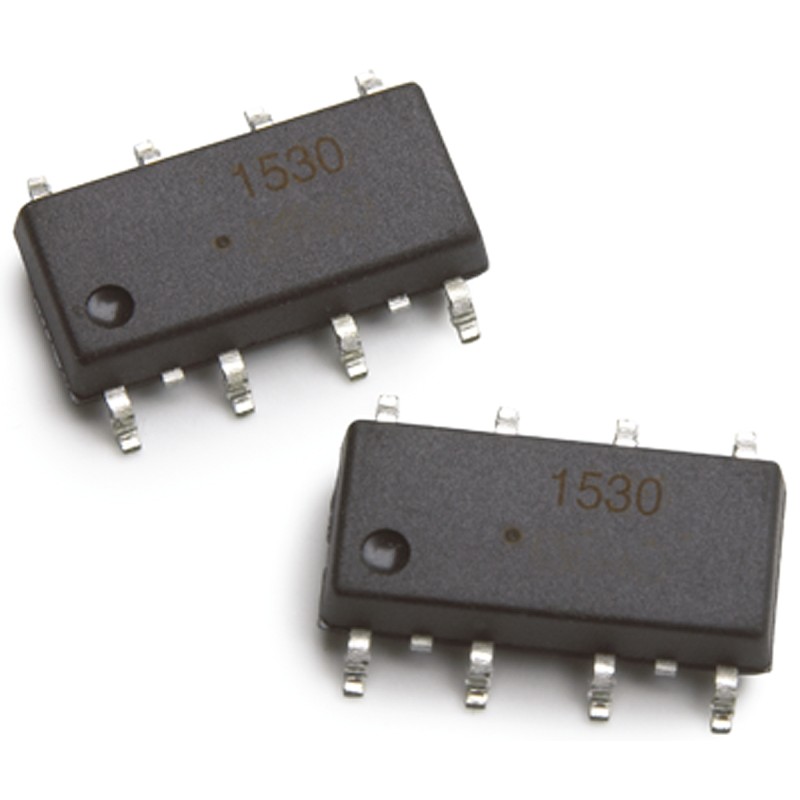

    1 pcs - Broadcom ASSR-15XX Series Solid State Relay, 1 A Load, Surface Mount, 60 V Load, 0.8 V Control
    • 1 pcs - Broadcom ASSR-15XX Series Solid State Relay, 1 A Load, Surface Mount, 60 V Load, 0.8 V Control

    1 pcs - Broadcom ASSR-15XX Series Solid State Relay, 1 A Load, Surface Mount, 60 V Load, 0.8 V Control

    Allparts-UK/15/R/839-9935
    Broadcom
    £32.49
    Delivery: 4-7 business days
    Quantity
    539 Items

    Product Details
    Broadcom
    Allparts-UK/15/R/839-9935
    ASSR-1530-005E
    539 Items

    Data sheet

    Manufacturer
    Broadcom
    Capacitance
    0.5pF
    Dimensions
    9.4 x 4.4 x 2mm
    Height
    2mm
    Length
    9.4mm
    Depth
    4.4mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Series
    ASSR-15XX
    Terminal Type
    8 Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    RoHS Compliant
    Contact Configuration
    SPST
    Special Features
    Compact Solid-State Bi-directional Signal Switch
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    1 A
    Maximum Load Voltage
    60 V
    Minimum Load Voltage
    -60 V
    Switching Type
    AC/DC
    Output Device
    MOSFET
    Maximum Control Voltage
    0.8 V
    Minimum Control Voltage
    0 V
    Control Voltage Range
    0 - 0.8 V
    Load Voltage Range
    -60 - +60V
    Off State Leakage Current
    1 μA
    Maximum Turn On Time
    2ms
    Relay Type
    PhotoMOSFET
