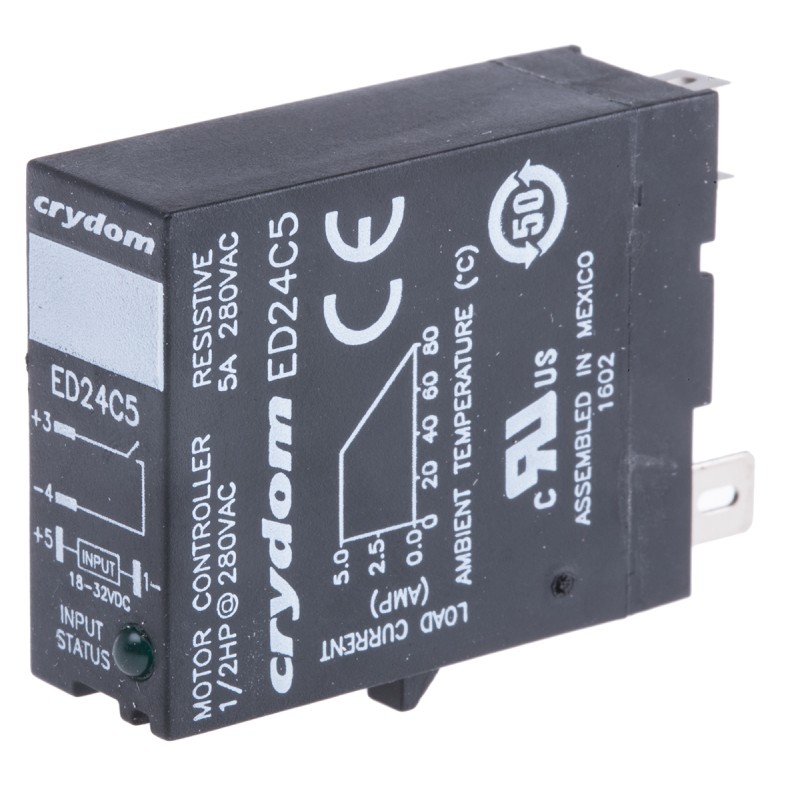

    1 pcs - Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 280 V rms Load, 32 V dc Control
    • 1 pcs - Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 280 V rms Load, 32 V dc Control
    • 1 pcs - Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 280 V rms Load, 32 V dc Control
    • 1 pcs - Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 280 V rms Load, 32 V dc Control

    1 pcs - Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 280 V rms Load, 32 V dc Control

    Allparts-UK/15/R/740-1343
    £52.63
    Delivery: 4-7 business days
    Quantity
    484 Items

    Product Details
    SENSATA / CRYDOM
    Allparts-UK/15/R/740-1343
    ED24C5
    484 Items

    Data sheet

    Manufacturer
    SENSATA / CRYDOM
    Capacitance
    10pF
    Dimensions
    29 x 12.7 x 37.4mm
    Height
    37.4mm
    Length
    29mm
    Depth
    12.7mm
    A-Supplier
    Allparts-UK-R
    Series
    ED
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +80°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -30°C
    Standards Met
    CE, cURus
    Contact Configuration
    SPST
    Special Features
    AC or DC control, LED Input Status Indicator
    Operating Temperature Range
    -30 - +80°C
    Maximum Load Current
    5 A
    Maximum Load Voltage
    280 V rms
    Minimum Load Voltage
    24 V rms
    Switching Type
    Zero Cross
    Minimum Load Current
    150 mA
    Maximum Control Voltage
    32 V dc
    Minimum Control Voltage
    18 V dc
    Control Voltage Range
    18 - 32 V dc
    Load Voltage Range
    24 - 280Vrms
    Off State Leakage Current
    0.1mA rms
    Maximum Turn On Time
    8.33ms
    Relay Type
    Solid State Relay
