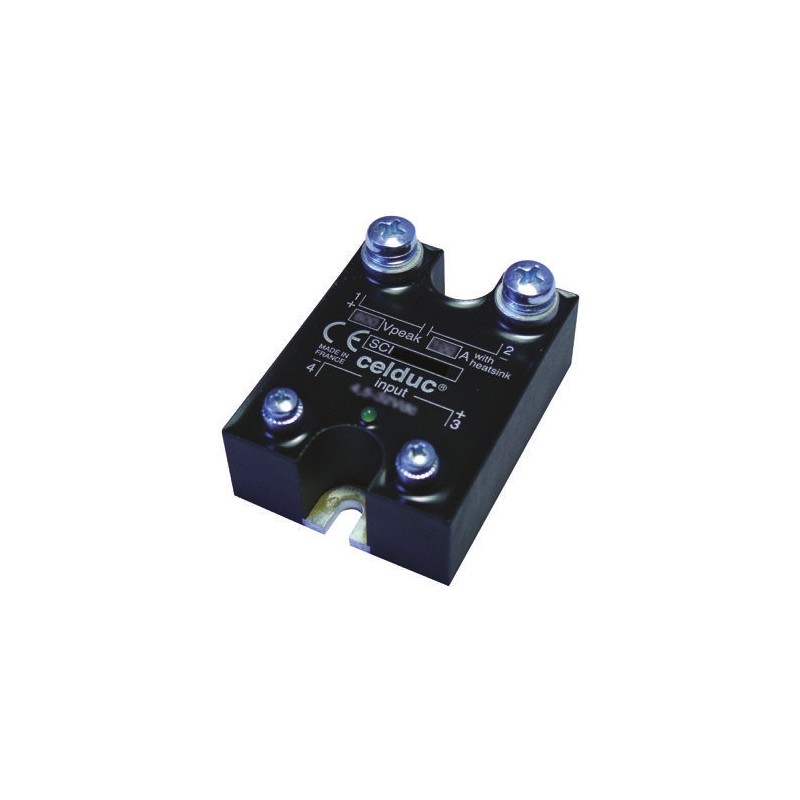

1 pcs - Celduc SCI Series Solid State Relay, 50 A Load, Panel Mount, 1200 V dc Load, 32 V dc Control
  • 1 pcs - Celduc SCI Series Solid State Relay, 50 A Load, Panel Mount, 1200 V dc Load, 32 V dc Control

1 pcs - Celduc SCI Series Solid State Relay, 50 A Load, Panel Mount, 1200 V dc Load, 32 V dc Control

Allparts-UK/15/R/702-6804
CELDUC
£914.87
Quantity
Out-of-Stock

Product Details
CELDUC
Allparts-UK/15/R/702-6804
SCI0501200

Data sheet

Manufacturer
CELDUC
Dimensions
44.5 x 19.6 x 58.2mm
Height
58.2mm
Length
44.5mm
Range
SCI
Depth
19.6mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
SCI
Terminal Type
Screw
Maximum Operating Temperature
+90°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE, EAC, cURus
Operating Temperature Range
-40 - +90°C
Maximum Load Current
50 A
Maximum Load Voltage
1200 V dc
Minimum Load Voltage
0 V dc
Switching Type
DC
Minimum Load Current
0 A
Output Device
IGBT
Maximum Control Voltage
32 V dc
Minimum Control Voltage
4.5 V dc
Control Voltage Range
4.5 - 32 V dc
Load Voltage Range
0 - 1200V dc
Off State Leakage Current
1 mA
Maximum Turn On Time
0.01ms
Relay Type
DC Solid State Relay
