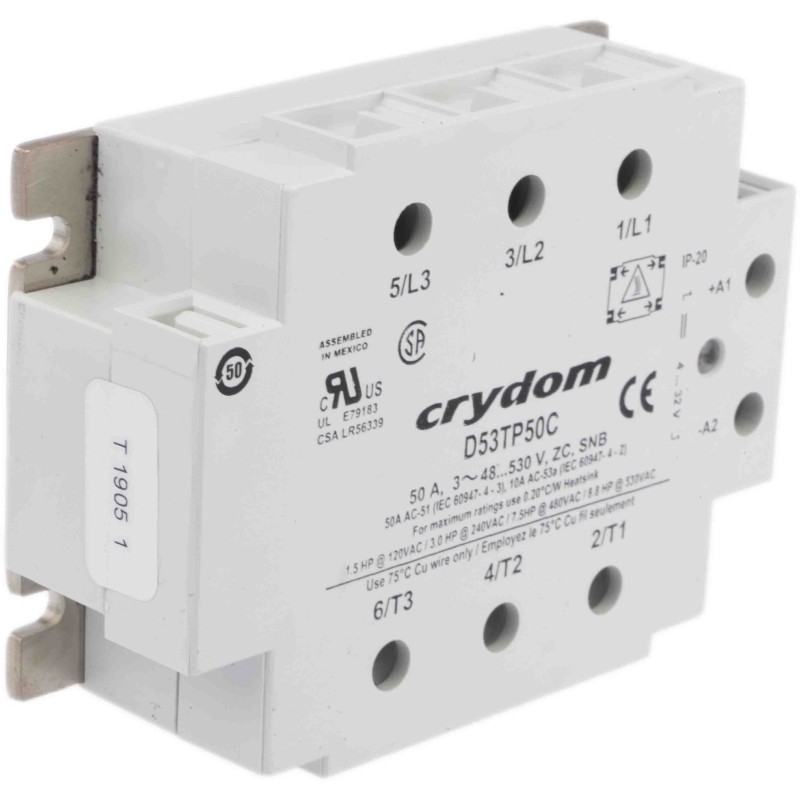

1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

Allparts-UK/15/R/720-3928
£533.72
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/720-3928
D53TP50C

Data sheet

Manufacturer
SENSATA / CRYDOM
Capacitance
8pF
Dimensions
101.3 x 35.4 x 79.7mm
Height
79.7mm
Length
101.3mm
Depth
35.4mm
A-Supplier
Allparts-UK-R
Series
53TP
Terminal Type
Screw
Maximum Operating Temperature
+80°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE, RoHS Compliant
Operating Temperature Range
-40 - +80°C
Maximum Load Current
50 A rms
Maximum Load Voltage
530 V ac
Minimum Load Voltage
48 V ac
Switching Type
Zero Cross
Minimum Load Current
0.1 A rms
Output Device
SCR
Maximum Control Voltage
32 V dc
Minimum Control Voltage
4 V dc
Control Voltage Range
4 - 32 V dc
Load Voltage Range
48 - 530Vrms
Off State Leakage Current
3mA rms
Maximum Turn On Time
8.33ms
Relay Type
Solid State Relay
