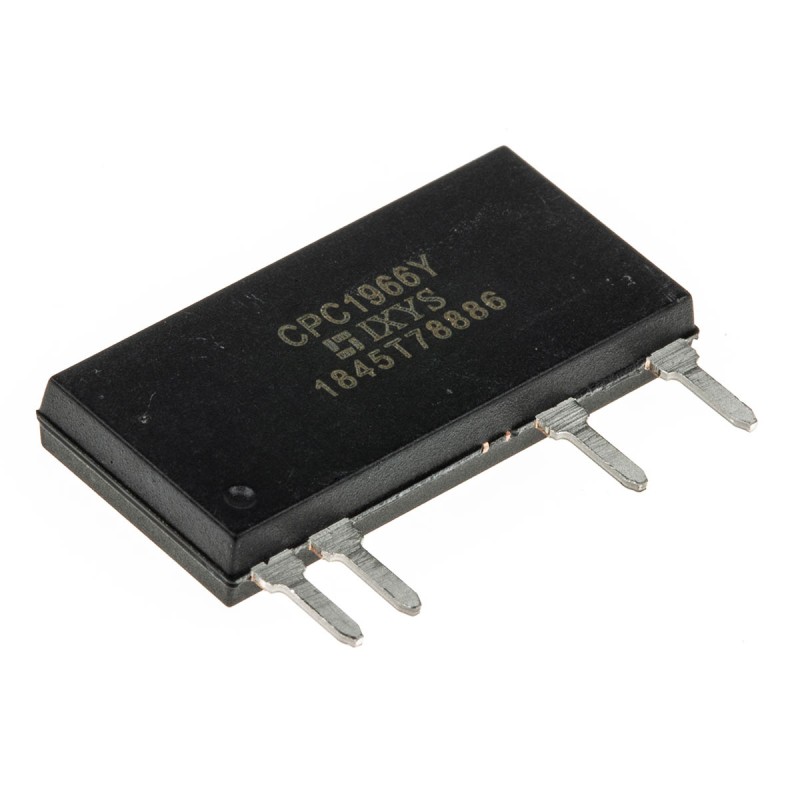

    1 pcs - IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control
    • 1 pcs - IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control
    • 1 pcs - IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control
    • 1 pcs - IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control

    1 pcs - IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control

    Allparts-UK/15/R/906-1091
    IXYS
    £12.84
    Delivery: 4-7 business days
    Quantity
    262 Items

    Product Details
    IXYS
    Allparts-UK/15/R/906-1091
    CPC1966Y
    262 Items

    Data sheet

    Manufacturer
    IXYS
    Capacitance
    3pF
    Dimensions
    21.082 x 3.302 x 10.16mm
    Height
    10.2mm
    Length
    21.1mm
    Depth
    3.3mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Mounting Type
    PCB Mount
    Standards Met
    CSA, UL File E69938
    Contact Configuration
    SPST
    Special Features
    AC Output, DC Control, High Noise Immunity, Low EMI and RFI Generation, Machine Insertable, Optically Isolated, TTL & CMOS Compatible, Wave Solderable, Zero Crossing Detection
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    3 A rms
    Maximum Load Voltage
    240 V ac
    Minimum Load Voltage
    20 V ac
    Switching Type
    Zero Cross
    Minimum Load Current
    0.1 A rms
    Output Device
    SCR
    Maximum Control Voltage
    1.4 V
    Minimum Control Voltage
    0.9 V
    Control Voltage Range
    20 - 240 V rms
    Off State Leakage Current
    100 μA
    Maximum Turn On Time
    1/2 cycle
    Relay Type
    Power Relay
