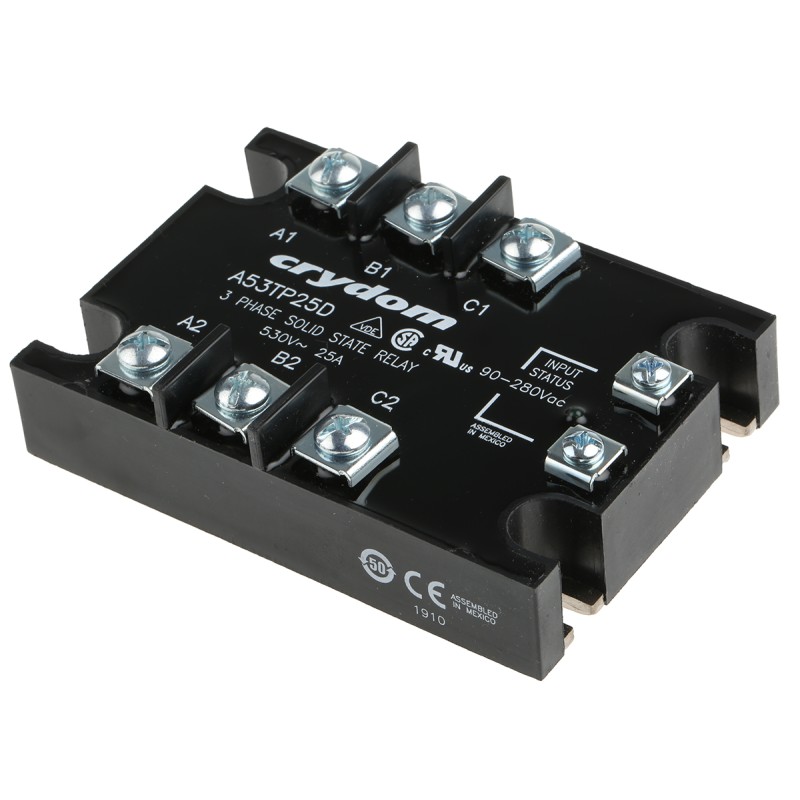

1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control
  • 1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control
  • 1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control
  • 1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control

1 pcs - Sensata / Crydom 53TP Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control

Allparts-UK/15/R/218-1915
£441.91
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/218-1915
A53TP25D

Data sheet

Manufacturer
SENSATA / CRYDOM
Capacitance
8pF
Dimensions
103.8 x 73.4 x 30mm
Height
30mm
Length
103.8mm
Depth
73.4mm
A-Supplier
Allparts-UK-R
Series
53TP
Terminal Type
Screw
Maximum Operating Temperature
+80°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE
Operating Temperature Range
-40 - +80°C
Maximum Load Current
25 A rms
Maximum Load Voltage
530 V rms
Minimum Load Voltage
48 V ac
Switching Type
Zero Cross
Minimum Load Current
0.05 A
Output Device
SCR
Maximum Control Voltage
280 V rms
Minimum Control Voltage
90 V ac
Control Voltage Range
90 - 280 V ac
Load Voltage Range
48 - 530V ac
Off State Leakage Current
10 mArms
Maximum Turn On Time
1/2 cycle
Relay Type
Solid State Relay
