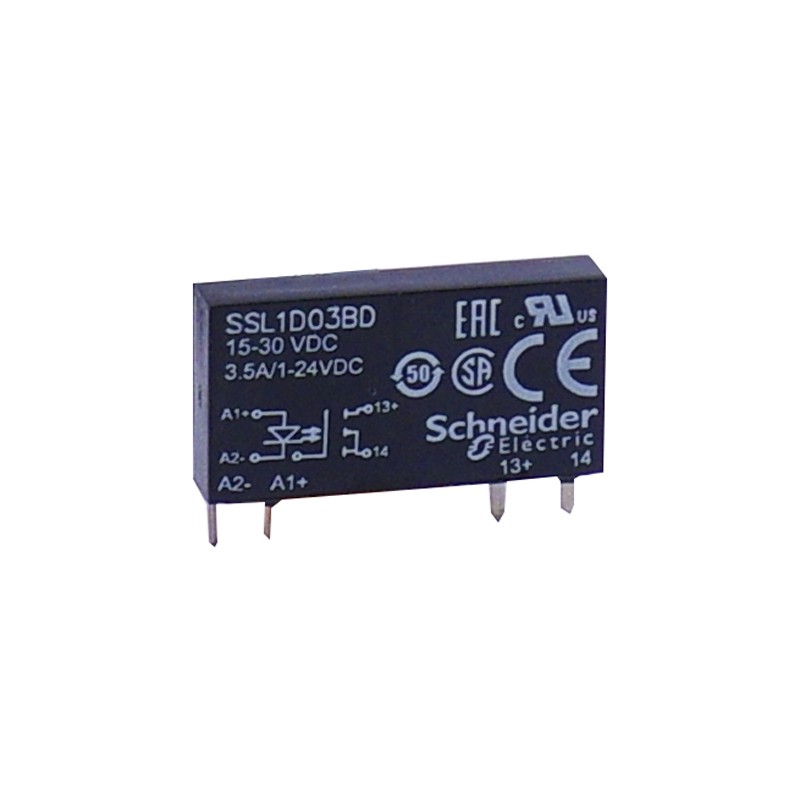

    1 pcs - Schneider Electric Harmony Relay Series Solid State Relay, 3.5 A Load, PCB Mount, 24 V dc Load, 30 V dc Control
    • 1 pcs - Schneider Electric Harmony Relay Series Solid State Relay, 3.5 A Load, PCB Mount, 24 V dc Load, 30 V dc Control

    1 pcs - Schneider Electric Harmony Relay Series Solid State Relay, 3.5 A Load, PCB Mount, 24 V dc Load, 30 V dc Control

    Allparts-UK/15/R/922-1837
    £47.45
    Delivery: 4-7 business days
    Quantity
    22 Items

    Product Details
    SCHNEIDER ELECTRIC
    Allparts-UK/15/R/922-1837
    SSL1D03BD
    22 Items

    Data sheet

    Manufacturer
    SCHNEIDER ELECTRIC
    Capacitance
    1.5pF
    Dimensions
    28 x 5 x 15mm
    Height
    15mm
    Length
    28mm
    Depth
    5mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Series
    Harmony Relay
    Better World Product
    Yes
    Better World Verification
    Green Premium
    Terminal Type
    PCB Pin
    Mounting Type
    PCB Mount
    Standards Met
    CE, CSA, UL
    Contact Configuration
    SPST
    Special Features
    Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals
    Operating Temperature Range
    -20 - +80°C
    Maximum Load Current
    3.5 A
    Maximum Load Voltage
    24 V dc
    Minimum Load Voltage
    1 V dc
    Switching Type
    DC
    Minimum Load Current
    0.001 A
    Output Device
    MOSFET
    Maximum Control Voltage
    30 V dc
    Minimum Control Voltage
    15 V dc
    Control Voltage Range
    15 - 30 V dc
    Load Voltage Range
    1 - 24V dc
    Off State Leakage Current
    0.001 mA
    Maximum Turn On Time
    0.35ms
    Relay Type
    Single Phase
