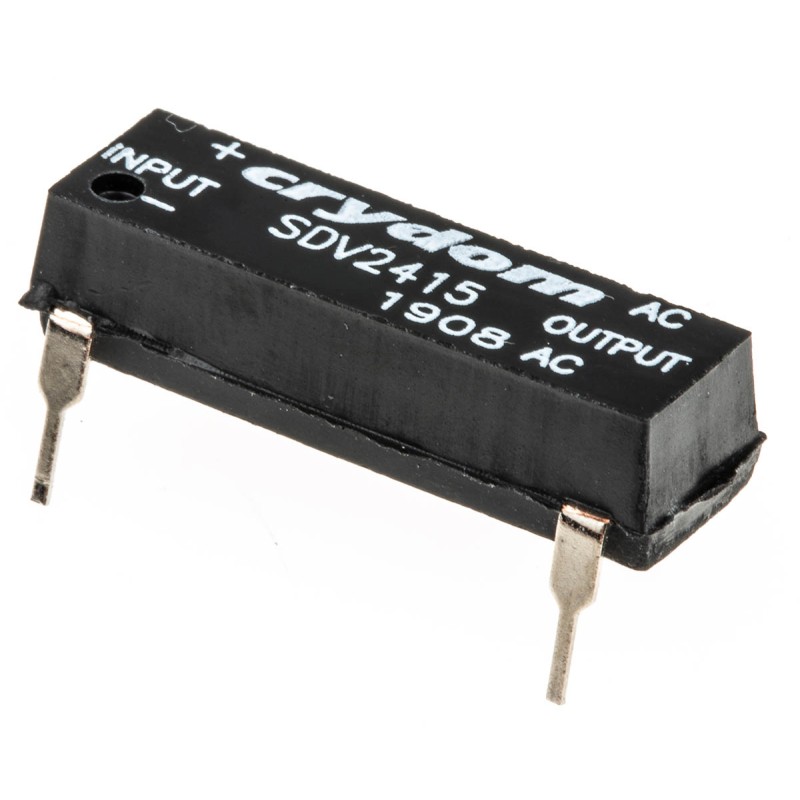

    1 pcs - Sensata / Crydom SDV Series Solid State Relay, 1.5 A rms Load, PCB Mount, 280 V rms Load, 10 V dc Control
    • 1 pcs - Sensata / Crydom SDV Series Solid State Relay, 1.5 A rms Load, PCB Mount, 280 V rms Load, 10 V dc Control
    • 1 pcs - Sensata / Crydom SDV Series Solid State Relay, 1.5 A rms Load, PCB Mount, 280 V rms Load, 10 V dc Control
    • 1 pcs - Sensata / Crydom SDV Series Solid State Relay, 1.5 A rms Load, PCB Mount, 280 V rms Load, 10 V dc Control

    1 pcs - Sensata / Crydom SDV Series Solid State Relay, 1.5 A rms Load, PCB Mount, 280 V rms Load, 10 V dc Control

    Allparts-UK/15/R/244-9019
    £51.20
    Delivery: 4-7 business days
    Quantity
    21 Items

    Product Details
    SENSATA / CRYDOM
    Allparts-UK/15/R/244-9019
    SDV2415
    21 Items

    Data sheet

    Manufacturer
    SENSATA / CRYDOM
    Capacitance
    2pF
    Dimensions
    21.59 x 6.73 x 4.8mm
    Height
    4.8mm
    Length
    21.6mm
    Range
    Crydom
    Depth
    6.7mm
    A-Supplier
    Allparts-UK-R
    Series
    SDV
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +80°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -30°C
    Standards Met
    CE, RoHS Compliant
    Special Features
    Zero Crossing
    Operating Temperature Range
    -30 - +80°C
    Maximum Load Current
    1.5 A rms
    Maximum Load Voltage
    280 V rms
    Switching Type
    Zero Cross
    Minimum Load Current
    0.025 A
    Output Device
    SCR
    Maximum Control Voltage
    10 V dc
    Minimum Control Voltage
    3.5 V dc
    Control Voltage Range
    3.5 - 10 V dc
    Load Voltage Range
    12 - 280V ac
    Off State Leakage Current
    0.01 mArms
    Maximum Turn On Time
    1/2 cycle
