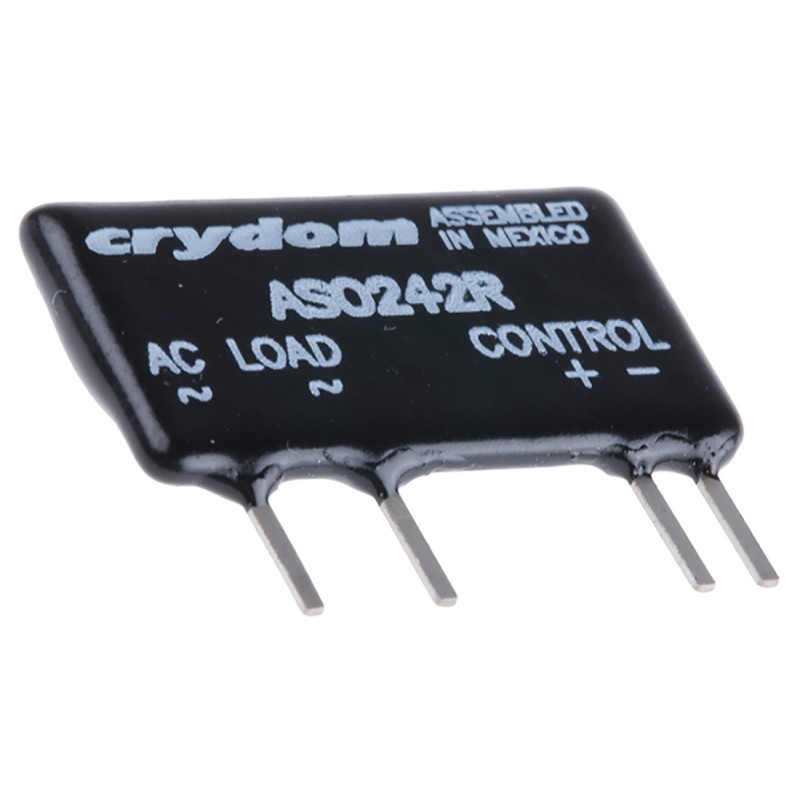

    1 pcs - Sensata / Crydom Solid State Relay, 2 A Load, PCB Mount, 280 V rms Load, 10 V dc Control
    • 1 pcs - Sensata / Crydom Solid State Relay, 2 A Load, PCB Mount, 280 V rms Load, 10 V dc Control

    1 pcs - Sensata / Crydom Solid State Relay, 2 A Load, PCB Mount, 280 V rms Load, 10 V dc Control

    Allparts-UK/15/R/738-5507
    £51.92
    Delivery: 4-7 business days
    Quantity
    Last items in stock
    2 Items

    Product Details
    SENSATA / CRYDOM
    Allparts-UK/15/R/738-5507
    ASO242R
    2 Items

    Data sheet

    Manufacturer
    SENSATA / CRYDOM
    Dimensions
    24.1 x 5.1 x 12.7mm
    Height
    12.7mm
    Length
    24.1mm
    Depth
    5.1mm
    A-Supplier
    Allparts-UK-R
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +80°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -30°C
    Contact Configuration
    SPST
    Operating Temperature Range
    -30 - +80°C
    Maximum Load Current
    2 A
    Maximum Load Voltage
    280 V rms
    Minimum Load Voltage
    12 V rms
    Switching Type
    Instantaneous
    Minimum Load Current
    0.06 A rms
    Output Device
    SCR
    Maximum Control Voltage
    10 V dc
    Minimum Control Voltage
    4 V dc
    Control Voltage Range
    4 - 10 V dc
    Load Voltage Range
    12 - 280Vrms
    Off State Leakage Current
    0.1mA rms
    Maximum Turn On Time
    1/2 cycle
