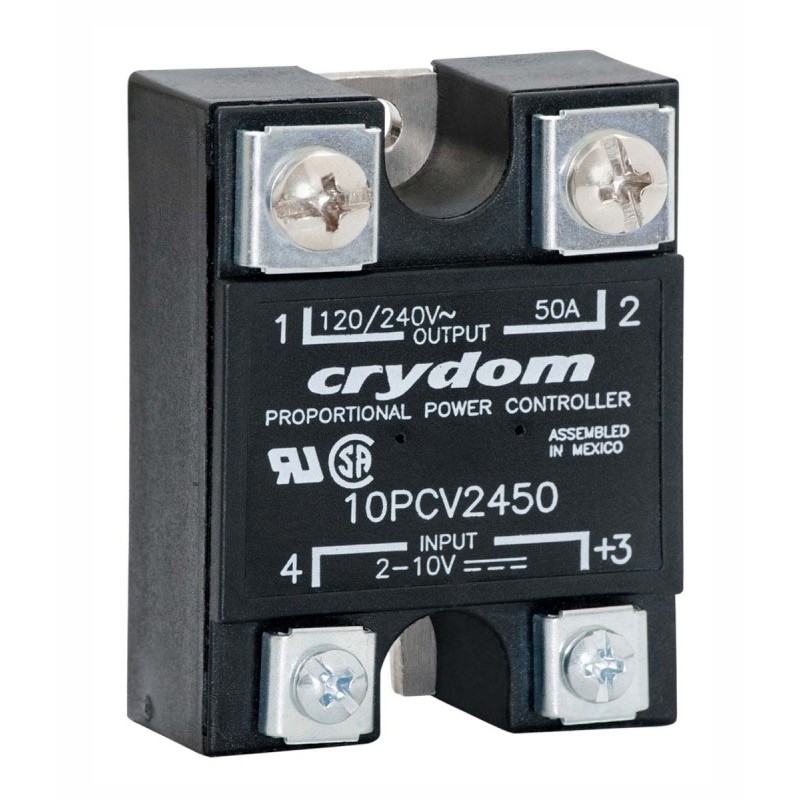

1 pcs - Sensata / Crydom PCV Series Series Solid State Relay, 15 A Load, Panel Mount, 280 Vrms Load, 10 V dc Control
  • 1 pcs - Sensata / Crydom PCV Series Series Solid State Relay, 15 A Load, Panel Mount, 280 Vrms Load, 10 V dc Control

1 pcs - Sensata / Crydom PCV Series Series Solid State Relay, 15 A Load, Panel Mount, 280 Vrms Load, 10 V dc Control

Allparts-UK/15/R/145-0561
£303.67
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/145-0561
10PCV2415

Data sheet

Manufacturer
SENSATA / CRYDOM
Dimensions
45.7 x 58.4 x 23mm
Height
23mm
Length
45.7mm
Depth
58.4mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
PCV Series
Terminal Type
Screw
Maximum Operating Temperature
+80°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-30°C
Standards Met
CE, CSA LR 81689-73, CULus
Special Features
For use with Resistive Loads Only, Proportional Controller
Operating Temperature Range
-30 - +80°C
Maximum Load Current
15 A
Maximum Load Voltage
280 Vrms
Minimum Load Voltage
100 V rms
Switching Type
Zero Cross
Minimum Load Current
150 mA
Maximum Control Voltage
10 V dc
Minimum Control Voltage
2 V dc
Control Voltage Range
2 - 10 V dc
Load Voltage Range
60 - 280Vrms
Off State Leakage Current
10mArms
Relay Type
Solid State Relay
