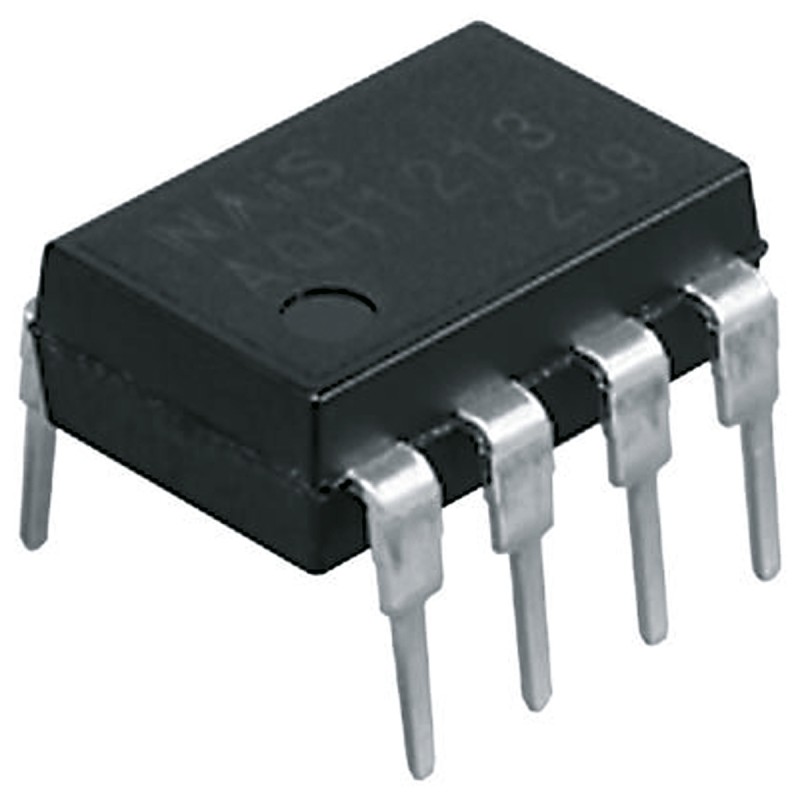

    1 pcs - Panasonic AQ-H Series Solid State Relay, 0.6 A Load, PCB Mount, 600 V Load, 6 V dc Control
    • 1 pcs - Panasonic AQ-H Series Solid State Relay, 0.6 A Load, PCB Mount, 600 V Load, 6 V dc Control

    1 pcs - Panasonic AQ-H Series Solid State Relay, 0.6 A Load, PCB Mount, 600 V Load, 6 V dc Control

    Allparts-UK/15/R/811-3264
    PANASONIC
    £9.50
    Delivery: 4-7 business days
    Quantity
    152 Items

    Product Details
    PANASONIC
    Allparts-UK/15/R/811-3264
    AQH1213
    152 Items

    Data sheet

    Manufacturer
    PANASONIC
    Dimensions
    9.78 x 6.4 x 3.4mm
    Height
    3.4mm
    Length
    9.8mm
    Depth
    6.4mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Series
    AQ-H
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -30°C
    Standards Met
    RoHS Compliant
    Contact Configuration
    SPST
    Operating Temperature Range
    -30 - +85°C
    Maximum Load Current
    0.6 A
    Maximum Load Voltage
    600 V
    Switching Type
    Zero Cross
    Output Device
    Phototriac
    Maximum Control Voltage
    6 V dc
    Minimum Control Voltage
    1.3 V
    Control Voltage Range
    1.3 - 6 V
    Load Voltage Range
    Maximum of 600V
    Off State Leakage Current
    100 μA
    Maximum Turn On Time
    0.1ms
    Relay Type
    Solid State Relay
