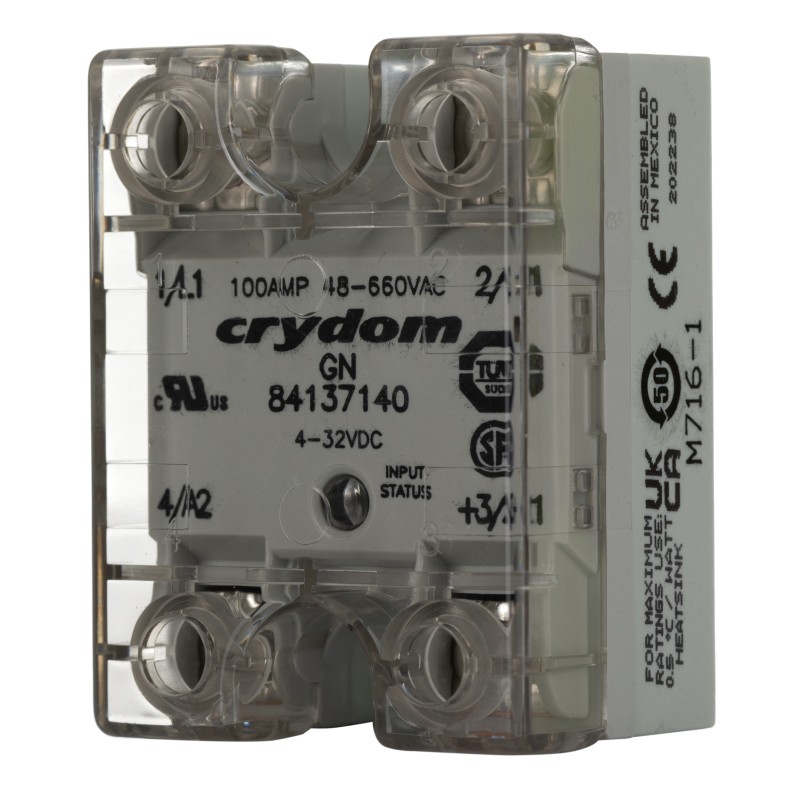

1 pcs - Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
  • 1 pcs - Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control

1 pcs - Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control

Allparts-UK/15/R/145-0543
£319.08
Quantity
Out-of-Stock

Product Details
SENSATA / CRYDOM
Allparts-UK/15/R/145-0543
84137140

Data sheet

Manufacturer
SENSATA / CRYDOM
Capacitance
8pF
Dimensions
44.5 x 57.3 x 30.9mm
Height
30.9mm
Length
44.5mm
Range
Easy Pick
Depth
57.3mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
GN
Terminal Type
Screw
Maximum Operating Temperature
+80°C
Mounting Type
Panel Mount
Minimum Operating Temperature
-40°C
Standards Met
CE, CSA LR 38595, cULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL
Special Features
Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers
Operating Temperature Range
-40 - +80°C
Maximum Load Current
100 A rms
Maximum Load Voltage
660 V ac
Minimum Load Voltage
48 V ac
Switching Type
Zero Crossing
Minimum Load Current
100mA rms
Output Device
SSR
Maximum Control Voltage
32 V dc
Minimum Control Voltage
3 V dc
Control Voltage Range
3 - 32 V dc
Load Voltage Range
48 - 660V ac
Off State Leakage Current
0.25mArms
Maximum Turn On Time
1/2 cycle + 1 ms
Relay Type
Solid State Relay
