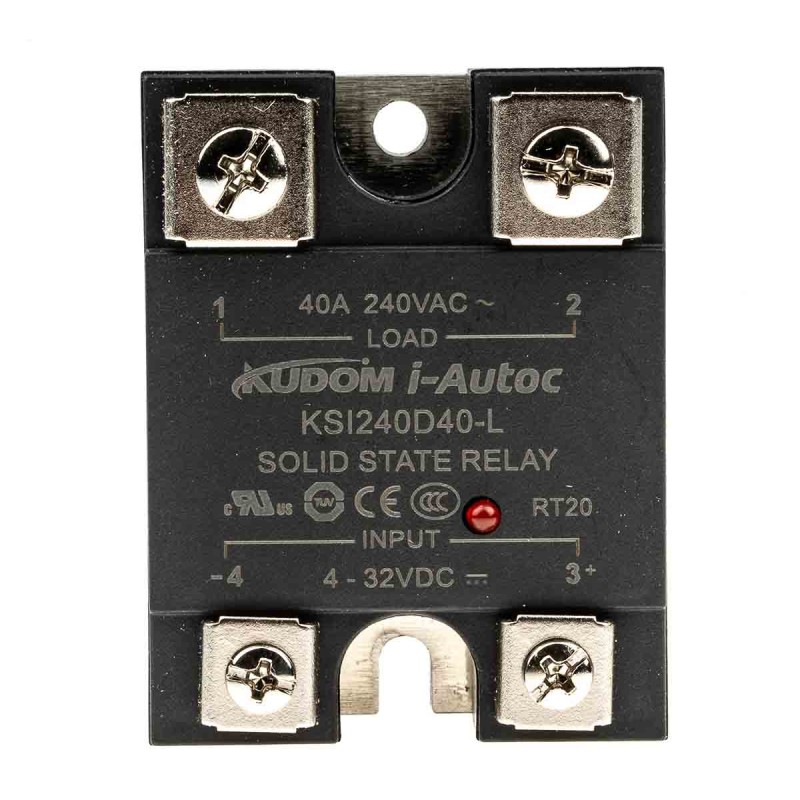

    1 pcs - i-Autoc KSI Series Solid State Relay, 40 A Load, Panel Mount, 280 V ac Load, 32 V dc Control
    • 1 pcs - i-Autoc KSI Series Solid State Relay, 40 A Load, Panel Mount, 280 V ac Load, 32 V dc Control
    • 1 pcs - i-Autoc KSI Series Solid State Relay, 40 A Load, Panel Mount, 280 V ac Load, 32 V dc Control
    • 1 pcs - i-Autoc KSI Series Solid State Relay, 40 A Load, Panel Mount, 280 V ac Load, 32 V dc Control

    1 pcs - i-Autoc KSI Series Solid State Relay, 40 A Load, Panel Mount, 280 V ac Load, 32 V dc Control

    Allparts-UK/15/R/903-2970
    i-Autoc
    £52.41
    Delivery: 4-7 business days
    Quantity
    14 Items

    Product Details
    i-Autoc
    Allparts-UK/15/R/903-2970
    KSI240D40-L
    14 Items

    Data sheet

    Manufacturer
    i-Autoc
    Dimensions
    58.6 x 45.7 x 26.5mm
    Height
    26.5mm
    Length
    58.6mm
    Depth
    45.7mm
    A-Supplier
    Allparts-UK-R
    Series
    KSI
    Terminal Type
    Screw
    Maximum Operating Temperature
    +80°C
    Mounting Type
    Panel Mount
    Minimum Operating Temperature
    -30°C
    Standards Met
    CE, TUV, UL
    Special Features
    Internal MOV, Internal RC, LED Indication, Superior Thermal Performance, TVS Protection Circuit as Option
    Operating Temperature Range
    -30 - +80°C
    Maximum Load Current
    40 A
    Maximum Load Voltage
    280 V ac
    Minimum Load Voltage
    48 V ac
    Switching Type
    Zero Cross
    Output Device
    SCR, TRIAC
    Maximum Control Voltage
    32 V dc
    Minimum Control Voltage
    4 V dc
    Control Voltage Range
    4 - 32 V dc
    Load Voltage Range
    48 - 280V ac
    Off State Leakage Current
    5 mA
    Maximum Turn On Time
    1ms
    Relay Type
    Industrial Single Phase Relay
