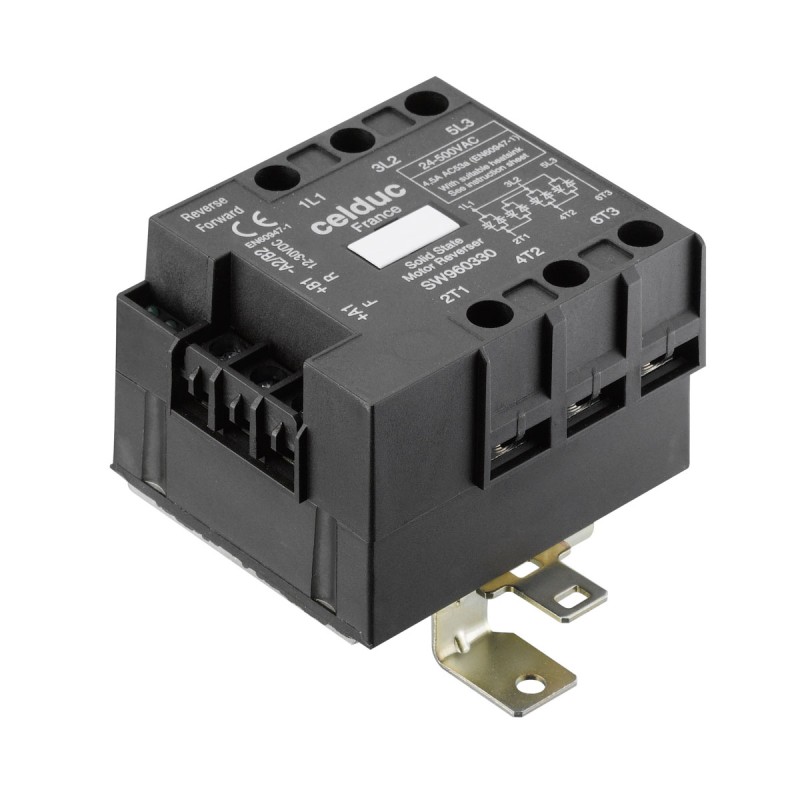

1 pcs - Celduc SG9-SV9-SW9 Series Solid State Relay, 4.5 A rms Load, DIN Rail Mount, 500 V ac Load, 30 V Control
  • 1 pcs - Celduc SG9-SV9-SW9 Series Solid State Relay, 4.5 A rms Load, DIN Rail Mount, 500 V ac Load, 30 V Control

1 pcs - Celduc SG9-SV9-SW9 Series Solid State Relay, 4.5 A rms Load, DIN Rail Mount, 500 V ac Load, 30 V Control

Allparts-UK/15/R/231-0854
CELDUC
£646.69
Quantity
Out-of-Stock

Product Details
CELDUC
Allparts-UK/15/R/231-0854
SW960330

Data sheet

Manufacturer
CELDUC
Height
72mm
Length
83mm
Range
celpac Ready to use
Number of poles
2
A-Supplier
Allparts-UK-R
Series
SG9-SV9-SW9
Terminal Type
Screw
Maximum Operating Temperature
+100°C
Mounting Type
DIN Rail
Minimum Operating Temperature
-40°C
Standards Met
CE
Operating Temperature Range
-40 - +100°C
Maximum Load Current
4.5 A rms
Maximum Load Voltage
500 V ac
Minimum Load Voltage
24 V ac
Switching Type
Random
Minimum Load Current
100 mA
Output Device
TRIAC
Maximum Control Voltage
30 V
Control Voltage Range
12 - 30 V dc
Load Voltage Range
24 - 500V ac
Maximum Turn On Time
20ms
Relay Type
AC Motor Reverser
