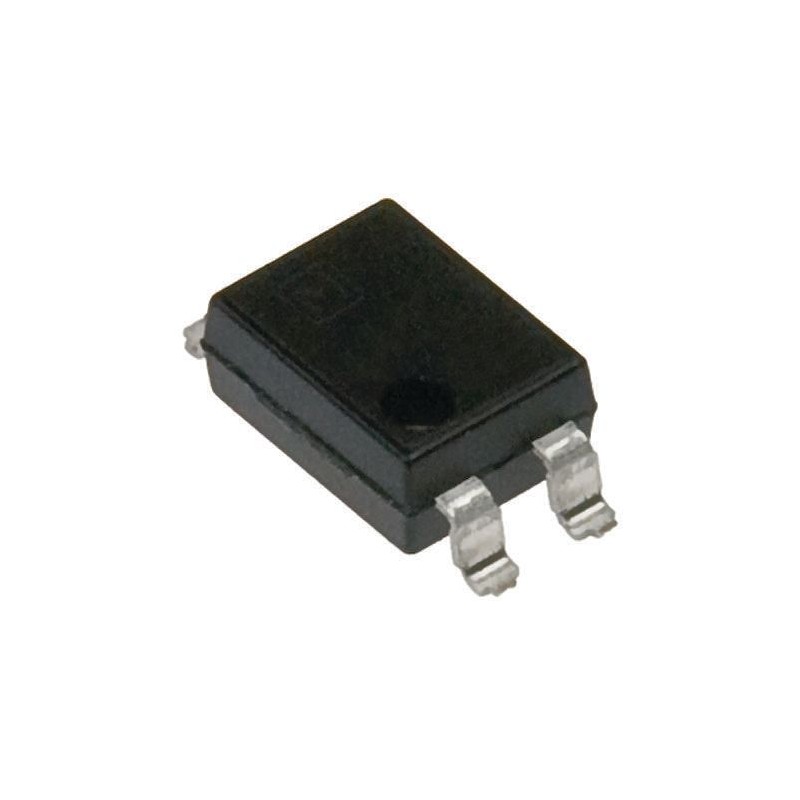

    1 pcs - Panasonic Solid State Relay, 130 mA Load, Surface Mount, 350 V Load, 5 V dc Control
    • 1 pcs - Panasonic Solid State Relay, 130 mA Load, Surface Mount, 350 V Load, 5 V dc Control

    1 pcs - Panasonic Solid State Relay, 130 mA Load, Surface Mount, 350 V Load, 5 V dc Control

    Allparts-UK/15/R/811-3312
    PANASONIC
    £9.86
    Delivery: 4-7 business days
    Quantity
    109 Items

    Product Details
    PANASONIC
    Allparts-UK/15/R/811-3312
    AQY280EHA
    109 Items

    Data sheet

    Manufacturer
    PANASONIC
    Dimensions
    6.4 x 4.78 x 2.7mm
    Height
    2.7mm
    Length
    6.4mm
    Depth
    4.8mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    Surface Mount
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    SPST
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    130 mA
    Maximum Load Voltage
    350 V
    Switching Type
    AC/DC
    Output Device
    PhotoMOS
    Maximum Control Voltage
    5 V dc
    Minimum Control Voltage
    1.5 V
    Control Voltage Range
    1.5 - 5 V
    Load Voltage Range
    Maximum of 350V
    Off State Leakage Current
    1 μA
    Maximum Turn On Time
    3ms
