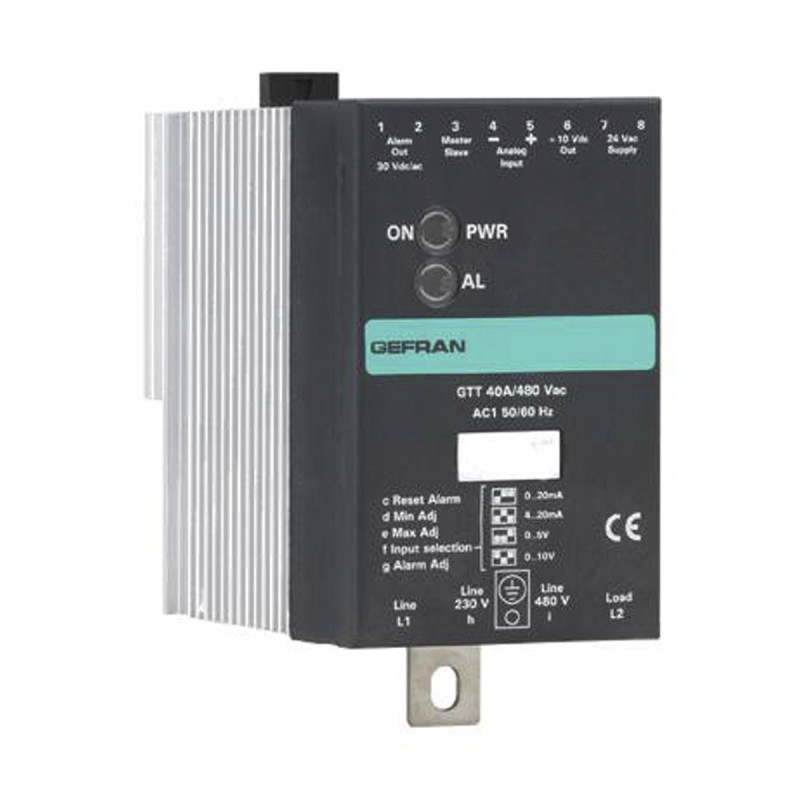

1 pcs - Gefran GTT Series Solid State Relay, 90 A Load, DIN Rail Mount, 530 V ac Load, 10 V dc Control
  • 1 pcs - Gefran GTT Series Solid State Relay, 90 A Load, DIN Rail Mount, 530 V ac Load, 10 V dc Control

1 pcs - Gefran GTT Series Solid State Relay, 90 A Load, DIN Rail Mount, 530 V ac Load, 10 V dc Control

Allparts-UK/15/R/183-3577
Gefran
£614.79
Quantity
Out-of-Stock

Product Details
Gefran
Allparts-UK/15/R/183-3577
GTT-90/480-0 (480V/90A)

Data sheet

Manufacturer
Gefran
Dimensions
127 x 142 x 126mm
Height
126mm
Length
127mm
Depth
142mm
A-Supplier
Allparts-UK-R
Series
GTT
Terminal Type
Screw
Maximum Operating Temperature
+80°C
Mounting Type
DIN Rail
Minimum Operating Temperature
0°C
Standards Met
CE
Special Features
ON‿ state, 1 Optional LED for Load Interrupt Alarm, 2 LED for Supply Indication, Antiparallel Double SCR, Command Input from Analogue Voltage or Current Signal or Potentiometer, Partialization of wave train power with Dynamically Optimized Time Cycle, Swi
Operating Temperature Range
0 - +80°C
Maximum Load Current
90 A
Maximum Load Voltage
530 V ac
Minimum Load Voltage
24 V ac
Output Device
Alarm
Maximum Control Voltage
10 V dc
Minimum Control Voltage
0 V dc
Control Voltage Range
0 - 10 V dc
Load Voltage Range
24 - 530V ac
Off State Leakage Current
<,3 mA
Relay Type
Solid State Relay
