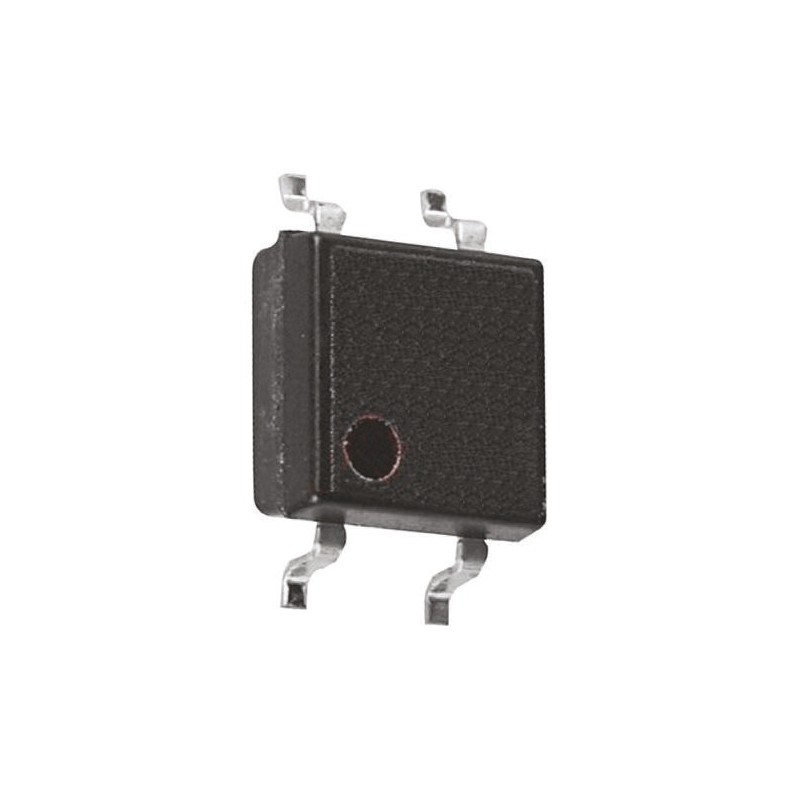

    10 pcs - AQY210S Panasonic Solid State Relay, 120 mA Load, PCB Mount, 350 V Load, 1.5 V Control
    • 10 pcs - AQY210S Panasonic Solid State Relay, 120 mA Load, PCB Mount, 350 V Load, 1.5 V Control

    10 pcs - AQY210S Panasonic Solid State Relay, 120 mA Load, PCB Mount, 350 V Load, 1.5 V Control

    10(Allparts)6996566
    PANASONIC
    Panasonic Solid State Relay, 120 mA Load, PCB Mount, 350 V Load, 1.5 V Control
    £52.12
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    AQY SeriesControls low-level analog signalsLow-level off-state leakage current of max. 1 μALow on-resistance -AQY22 SeriesApprovalsUL, C-UL (not for the AQY22 Series)
    Product Details
    PANASONIC
    10(Allparts)6996566
    AQY210S
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Dimensions
    4.3 x 4.4 x 2.1mm
    Height
    2.1mm
    Length
    4.3mm
    Depth
    4.4mm
    A-Supplier
    Allparts-UK/15/R-17
    Terminal Type
    Surface Mount
    Mounting Type
    PCB Mount
    Contact Configuration
    SPST
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    120 mA
    Maximum Load Voltage
    350 V
    Minimum Load Current
    0.12 A
    Output Device
    PhotoMOS
    Maximum Control Voltage
    1.5 V
    Minimum Control Voltage
    1.14 V
    Control Voltage Range
    1.14 - 1.5 V
    Load Voltage Range
    350V
    Off State Leakage Current
    1 μA
    Maximum Turn On Time
    0.5ms
