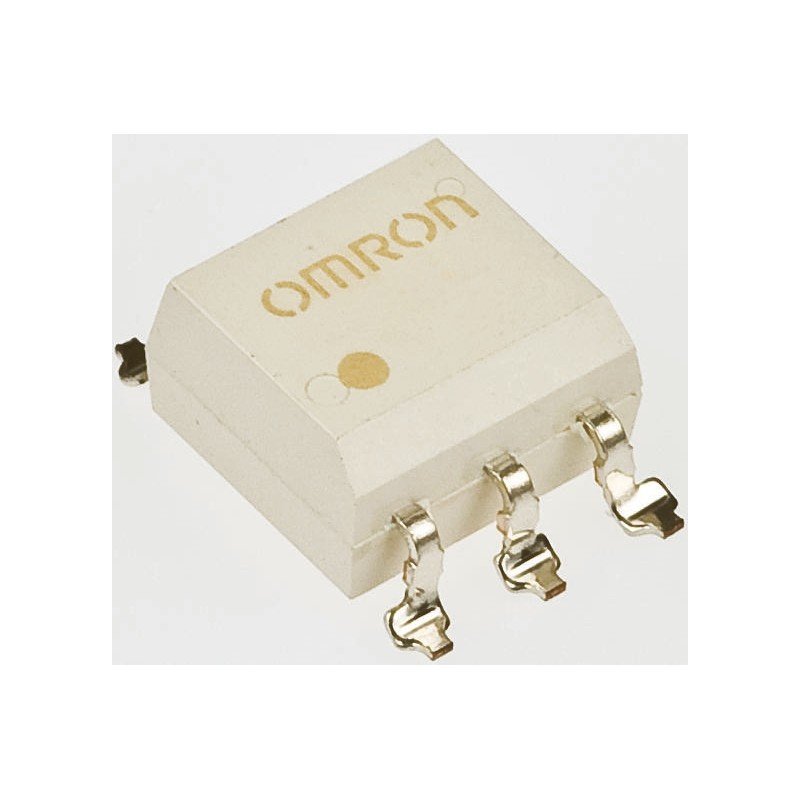

10 pcs - G3VM-351E Omron G3VM Series Solid State Relay, 0.12 A Load, Surface Mount, 350 V ac Load, 1.3 V Control

G3VM MOSFET SSRSolid-state relay with MOSFET output and photo-LED inputCombines advantages of mechanical and solid state technologyLow on-resistance and output capacitanceLong lifeWide range of models availableIdeal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functionsG3VM-351E MOS FET General Purpose Series SSR – Solid State Relay.The G3VM-351E relay is part of the upgraded G3VM-3 series offering a wealth of benefits. NO (normally open) through hole, DIP (dual in-line) package relay with 6 PCB terminals and a load voltage of 350 V.Features and Benefits G3VM-351E General Purpose SSR – Solid Sate Relay.• MOS FET Solid state relay.• Surface mounted relay terminals.• DIP 6 – (dual in line package)• Contact form SPST-NO (1a) (normally open).• Through hole relay.• 6 Relay terminals.• Load voltage 350 V ac.• Load current 120 (240) mA max.• Maximum resistance with output ON 35 Ohm.• Current leakage when relay is open 1000 nA max.• Capacitance between terminals 30 pF.• SSR -Turn ON time 1 ms max.• SSR -Turn OFF time 1 ms max.• Dielectric strength between I/O 2500 Vrms.• RoHS Compliant.Additional Features G3VM-351E General Purpose SSR – Solid State Relay.• Long operational life.• Small leakage current.• SSR has excellent shock resistance.• High insulation.• Silent operation.• High-speed switching.• Control the micro analogue signal.
