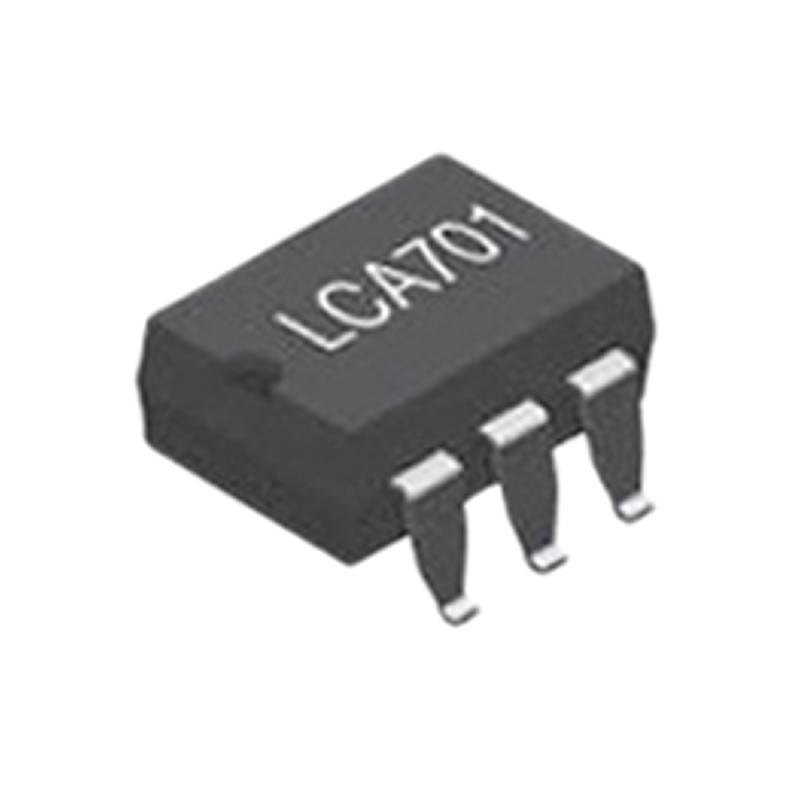

    1 pcs - IXYS Solid State Relay, 1.5 A rms/A dc, 2.5 A dc Load, Surface Mount
    • 1 pcs - IXYS Solid State Relay, 1.5 A rms/A dc, 2.5 A dc Load, Surface Mount

    1 pcs - IXYS Solid State Relay, 1.5 A rms/A dc, 2.5 A dc Load, Surface Mount

    Allparts-UK/15/R/906-1136
    IXYS
    £16.54
    Delivery: 4-7 business days
    Quantity
    10 Items

    Product Details
    IXYS
    Allparts-UK/15/R/906-1136
    LCA701S
    10 Items

    Data sheet

    Manufacturer
    IXYS
    Capacitance
    200pF
    Dimensions
    8.382 x 6.35 x 3.302mm
    Height
    3.3mm
    Length
    8.4mm
    Depth
    6.4mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    CSA, EN/IEC 60950, Certificate TUV B 09 07 49140 004, UL File E76270
    Contact Configuration
    SPST
    Special Features
    Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable
    Operating Temperature Range
    -40 - +85°C
    Maximum Load Current
    1.5 A rms/A dc, 2.5 A dc
    Switching Type
    AC/DC
    Output Device
    MOSFET
    Off State Leakage Current
    1 μA
    Maximum Turn On Time
    4ms
    Relay Type
    OptoMOS
