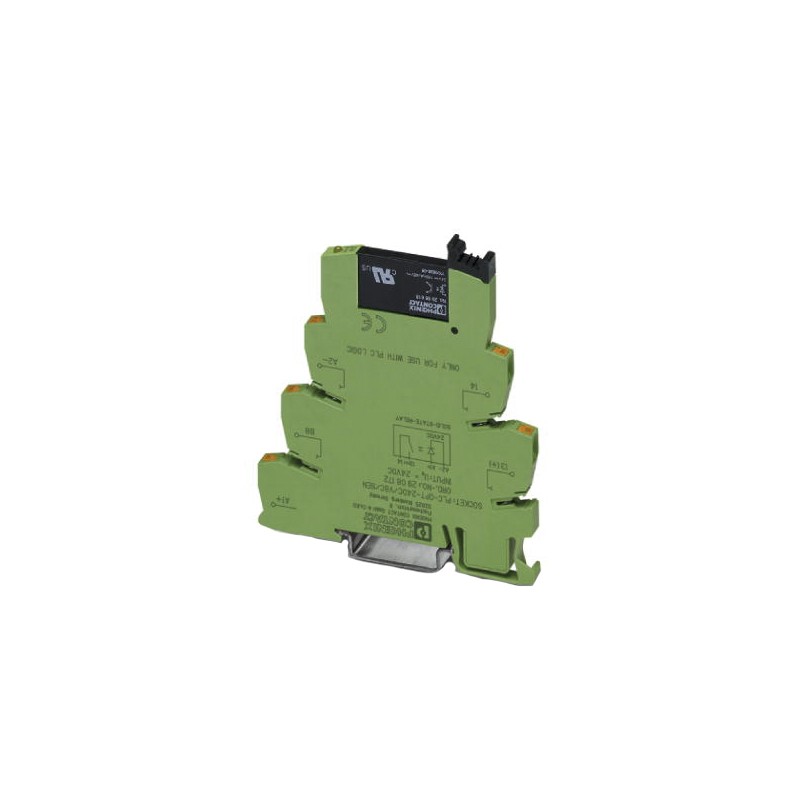

    1 pcs - Phoenix Contact PLC-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 mA Load, DIN Rail Mount
    • 1 pcs - Phoenix Contact PLC-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 mA Load, DIN Rail Mount

    1 pcs - Phoenix Contact PLC-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 mA Load, DIN Rail Mount

    Allparts-UK/15/R/171-9684
    £43.95
    Delivery: 4-7 business days
    Quantity
    61 Items

    Product Details
    PHOENIX CONTACT
    Allparts-UK/15/R/171-9684
    2908172
    61 Items

    Data sheet

    Manufacturer
    PHOENIX CONTACT
    Dimensions
    6.2 x 94 x 80mm
    Height
    80mm
    Length
    6.2mm
    Depth
    94mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Series
    PLC-OPT
    Terminal Type
    Plug In
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -25°C
    Contact Configuration
    SPST
    Special Features
    PLC-INTERFACE for Input Functions with PLC Logic, With Push-In Connection Plug-In Miniature Solid State Relay
    Operating Temperature Range
    -25 - +60°C
    Maximum Load Current
    3 mA
    Maximum Load Voltage
    30 V dc
    Minimum Load Voltage
    5 V dc
    Maximum Control Voltage
    28.8 V dc
    Minimum Control Voltage
    19.2 V dc
    Control Voltage Range
    19.2 - 28.8 V dc
    Load Voltage Range
    5 - 30V dc
    Maximum Turn On Time
    20 μs
