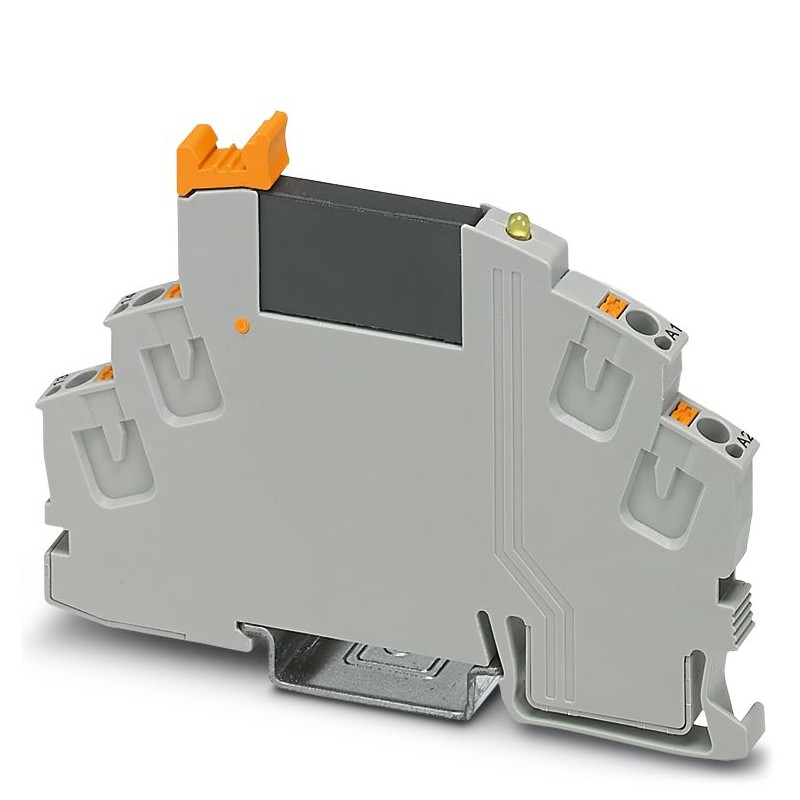

10 pcs - Phoenix Contact RIF-0-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 A Load, DIN Rail Mount
  • 10 pcs - Phoenix Contact RIF-0-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 A Load, DIN Rail Mount

10 pcs - Phoenix Contact RIF-0-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 A Load, DIN Rail Mount

Allparts-UK/15/R/207-3310
£562.12
Quantity
Out-of-Stock

Product Details
PHOENIX CONTACT
Allparts-UK/15/R/207-3310
2905293

Data sheet

Manufacturer
PHOENIX CONTACT
Dimensions
6.2 x 66 x 93mm
Height
93mm
Length
6.2mm
Range
RIF
Depth
66mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
RIF-0-OPT
Terminal Type
Push In
Maximum Operating Temperature
+60°C
Mounting Type
DIN Rail
Minimum Operating Temperature
-25°C
Contact Configuration
SPST
Operating Temperature Range
-20 - +60°C
Maximum Load Current
3 A
Maximum Load Voltage
33 V dc
Minimum Load Voltage
3 V dc
Switching Type
DC
Output Device
RIF
Maximum Control Voltage
28.8 V dc
Minimum Control Voltage
19.2 V
Control Voltage Range
19.2 - 28.8 V dc
Load Voltage Range
3 - 33V dc
Maximum Turn On Time
20 μs
