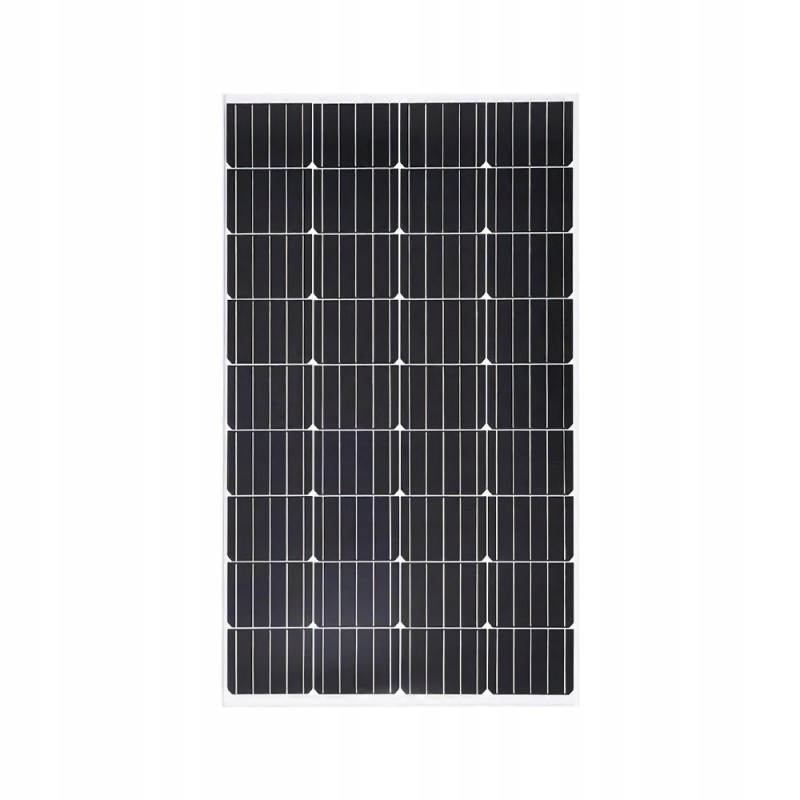

90w monocrystalline solar panel

90W Monocrystalline solar panel* Product code: ST-2687

The 90W solar panel, made of monocrystalline solar cells, has dimensions of 66x78 cm. It features efficient use of space thanks to the use of monocrystalline cells, which are known for their higher efficiency in converting sunlight into electricity compared to polycrystalline cells.

This panel model is ideal for applications where space is limited but high efficiency is required . It performs perfectly in a variety of environmental conditions, ensuring consistent performance even in less favorable weather conditions. Thanks to its compact dimensions, this panel can be easily installed on caravans or boats.

Technical Data **** Max. power. [W]: 90

Max voltage Vmp [V]: 19.6

Max current. Imp [A]: 4.59

Open-circuit voltage Voc [V]: 24.06

Short-circuit current Isc [A]: 5.03

Max. system voltage [V]: 1000

Operating temperature range [°C]: from -40 to 85

Length [mm]: 780

Width [mm]: 668

Depth [mm]: 30

Weight [kg]: 6.1
