Hybrid solar inverter 5 5 kw off grid mppt 100a 48v

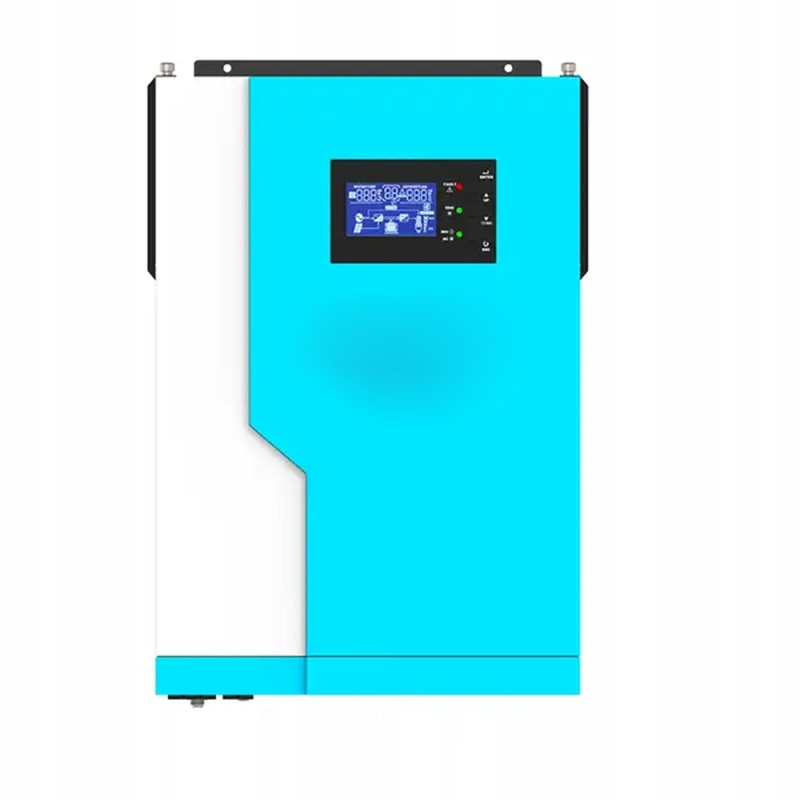

5.5KW 48V100A MPPT Solar Inverter Pure Sine Wave DC to AC Hybrid Power Converter for Home Model: VM II PLUS 5.5KW-48

Rated power: 5500VA/5500W

Possibility of parallel operation: No

Input:

Voltage: 230VAC

Selectable voltage range: 170-280 VAC (for personal computers), 90-280VAC (for home devices)

Frequency range: 50 Hz/60 (auto detection)

Output:

AC voltage regulation: 230VAC ± 5%

(Batt Mode)

Impact power: 10000VA

Efficiency (peak): 90% ~ 93%

Transfer time: 10 ms (for personal computer), 20 ms (for home devices)

Waveform: pure sine wave

Battery

Battery voltage: 48V DC

Floating charging voltage: 54V DC

Overcharge protection: 60VDC

SOLAR CHARGER AND AC CHARGER:

SOLAR CHARGER Type: MPPT

Maximum power of the open circuit of the photovoltaic panel: 6000 W

MPPT @ range: 120VDC~450VDC

Operating voltage

Maximum photovoltaic system: 500 V DC

聽Open circuit voltage

Maximum solar charging current: 100A

Maximum AC charging current: 100A

Maximum charging current: 100A
